Video Over IP

Integrated Timing Using NetSync PLLs and IEEE® 1588 PTP

See how our NetSync PLLs, OCXOs, buffers and oscillators work together to provide timing and phase control for Xilinx® Kintex®-7 processors. The ZL30732 network synchronizer, combined with our Precision Time Protocol (PTP) stack and synchronization algorithm software modules, delivers IEEE® 1588 PTP. The OX-5021 oscillator and VCC1 oscillator provide high stability and low jitter clocks.

Example Block Diagram

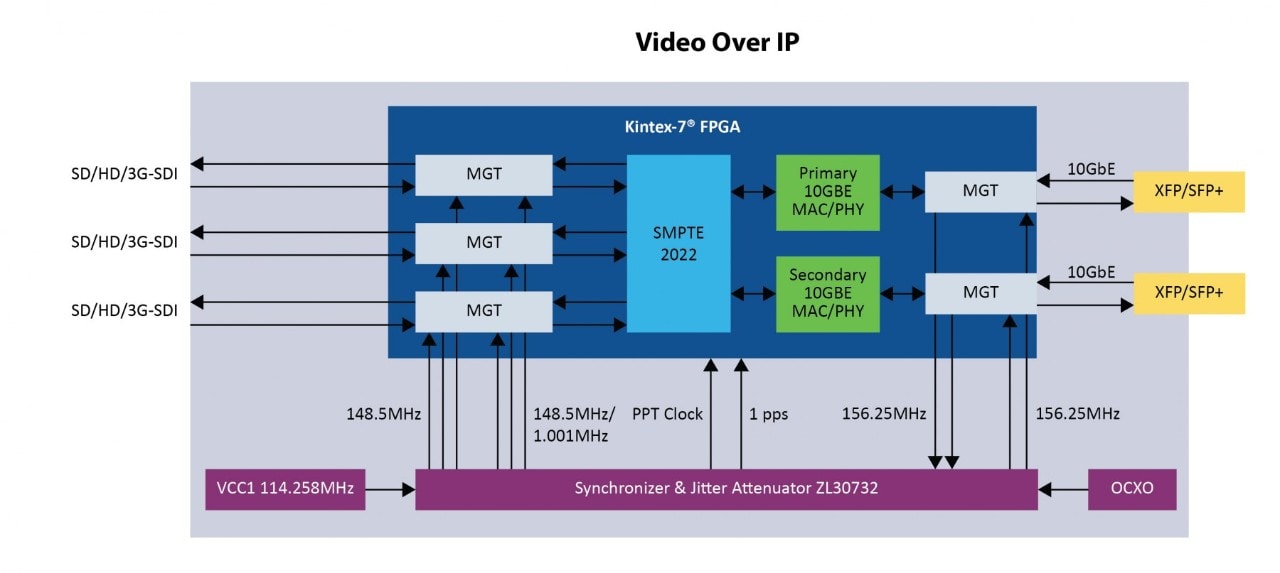

Block Diagram for Video Over IP

Featured Products

ZL30732

ZL30732

The ZL30732 is a feature-rich network synchronization solution with up to five independent DPLLs and five low output jitter synthesizers. Equipped with IEEE 1588-2008 PTP stack and synchronization algorithm software modules, these synchronizers are well suited for applications such as 5G Distributed Units (DUs), Centralized Units (CUs) and Radio Units (RUs).

Explore ZL30732
VCC1

VCC1

The VCC1 XO is a quartz-stabilized square wave generator with a CMOS output. The VCC1 uses fundamental or third overtone crystals, resulting in very low jitter performance and a monolithic IC that improves reliability and reduces cost.

Explore VCC1
