Reconfigurable 40G OTU3 Muxponder

Optimizing Timing Solutions with Customizable Clock Generators and Synchronizers

Explore the block diagram below to see how our clock generators, PLLs and crystal oscillators (XOs) deliver timing to Xilinx® Kintex®-7 processors. Using the VCC1 oscillators for reference, our ZL30632 synchronizers provide the precision clocks needed for synchronous Ethernet operation. Take advantage of multiple frequency outputs with low-jitter supply Ethernet and other system clocks. You can customize our synchronizers to provide the exact frequency plan you need in your design.

Example Block Diagram

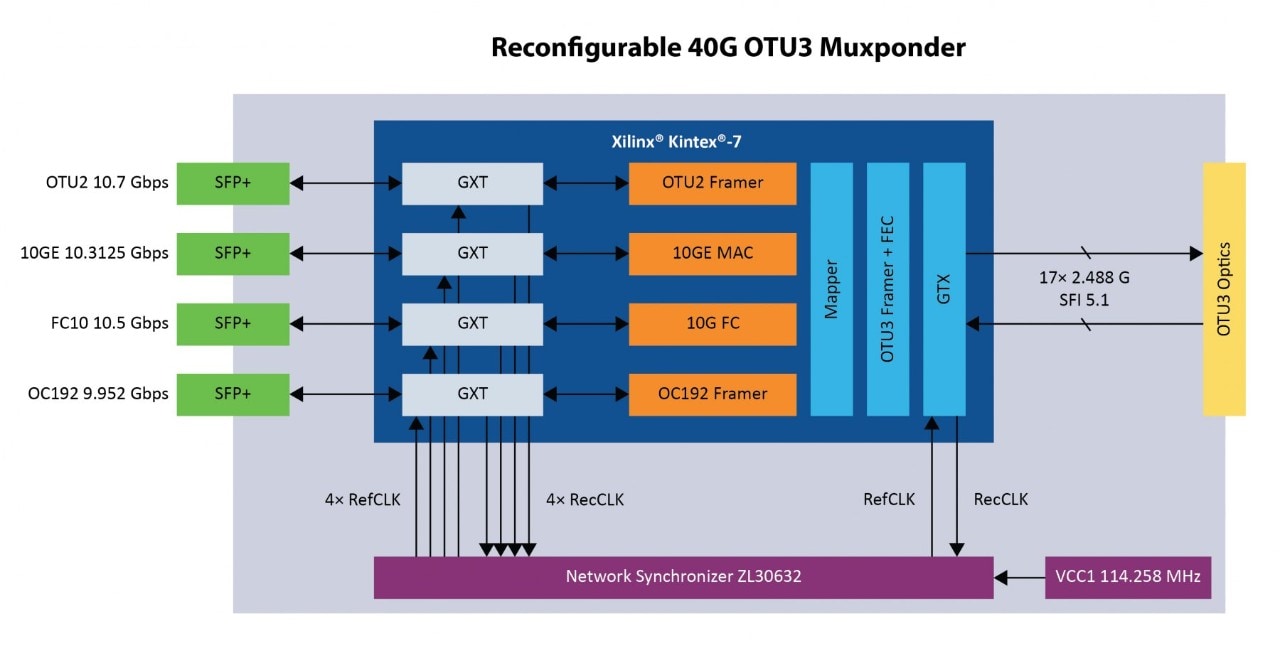

Block Diagram for 40G OTU3 Muxponder

Featured Products

ZL30632

ZL30632

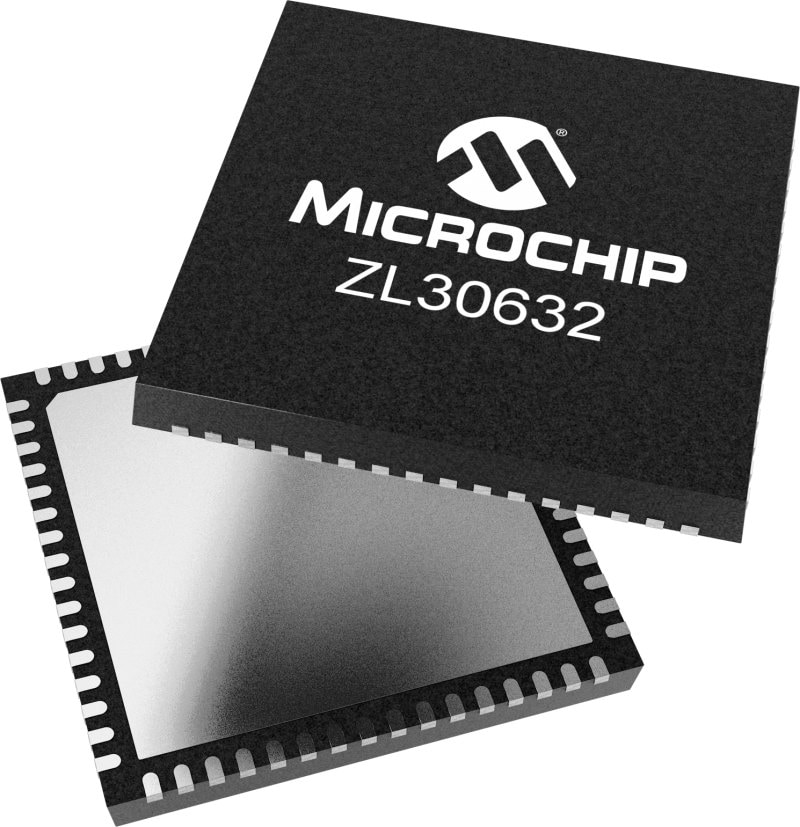

The ZL30632 is a feature-rich network synchronization solution with up to five independent DPLLs and five extremely low output jitter synthesizers. This solution is well suited for Synchronous Ethernet (SyncE) central timing applications such as 5G Distributed Units (DUs), Centralized Units (CUs) and Radio Units (RUs).

Explore ZL30632
VCC1

VCC1

The VCC1 XO is a quartz-stabilized square wave generator with a CMOS output. The VCC1 uses fundamental or third overtone crystals, resulting in very low jitter performance and a monolithic IC that improves reliability and reduces cost.

Explore VCC1
