Hardware Accelerator

Delivering Reliable Timing for Hardware Acceleration Applications

Our clock generators and crystal oscillators (XOs) deliver timing for Xilinx^® FPGAs, including the Virtex^® UltraScale™ family. Explore the block diagram below to see how the SM806 clock generator and VC-708 oscillator enable hardware acceleration. The SM806 clock generator provides multiple low-jitter Ethernet clocks while the VC708 supplies system clocks. You can customize our clock generators to provide the exact frequency plan you need in your design.

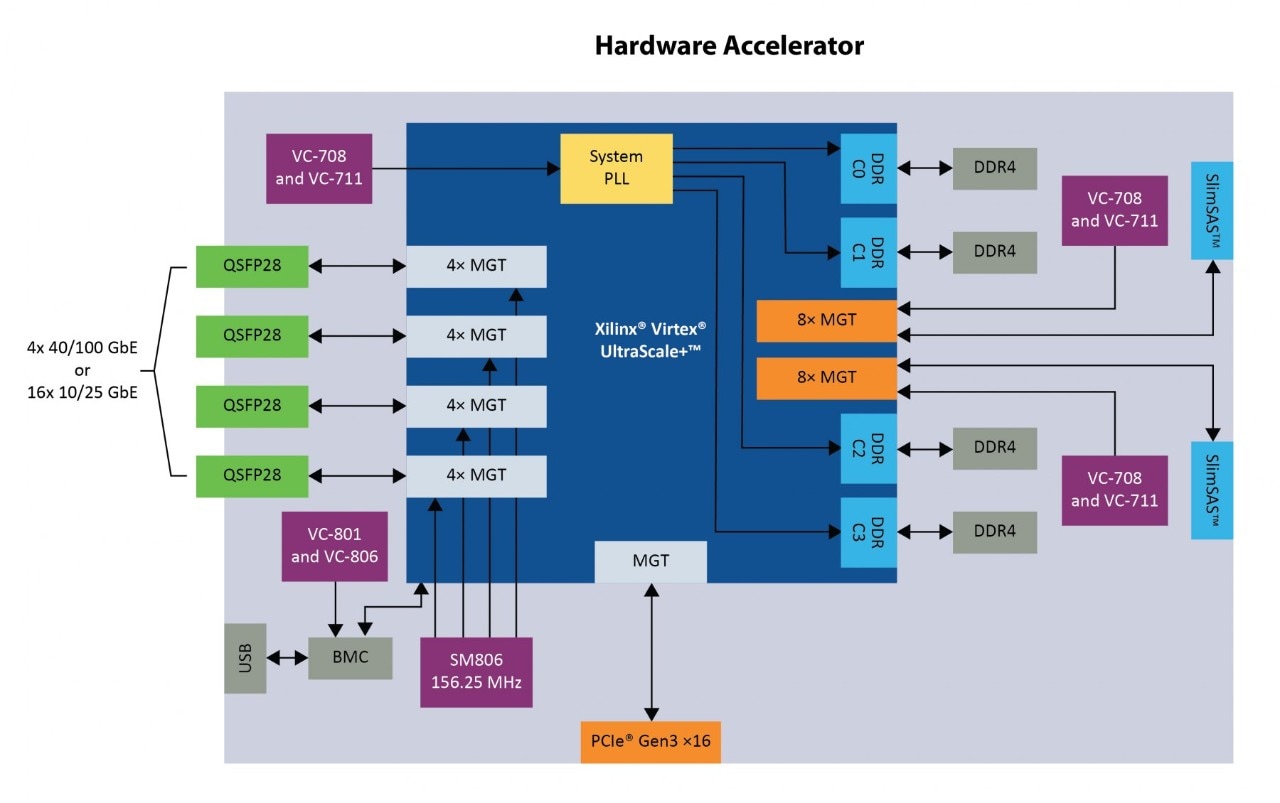

Example Block Diagram

Featured Products

VC-708

The VC-708 XO is a quartz-stabilized differential output oscillator that operates off a 3.3- or 2.5-volt supply in a hermetically sealed 7 × 5 mm ceramic package.

Explore VC-708

VC-801

The VC-801 XO is a quartz-stabilized square wave generator with a CMOS output. It uses fundamental or third overtone crystals, resulting in very low jitter performance and a monolithic IC that improves reliability and reduces cost.

Explore VC-801
