PCIe® Timing
Future-Proof Your Designs With PCIe® Gen 7-Compliant Oscillators, Buffers and Clock Generators
Featured Products

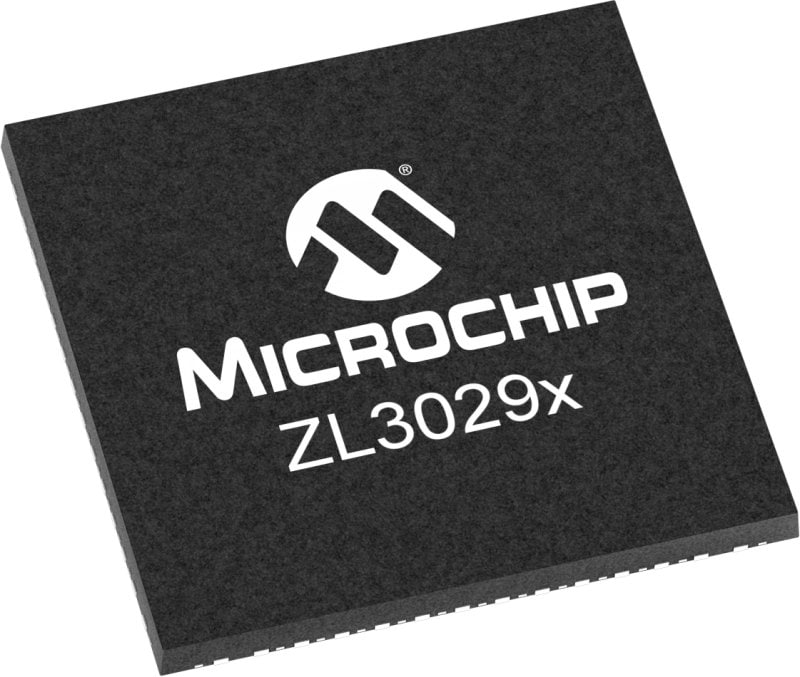

ZL3029x
The ZL3039x is a CK440-compliant PCIe Gen 7 clock generator for current and future data center applications. It is a complete clock synthesizer that features industry-leading jitter performance of less than 50 fs.
DSC1224
The DSC1224 oscillator is a high-reliability PCIe Gen 1/2/3/4/5/6/7 reference clock available in a small package.

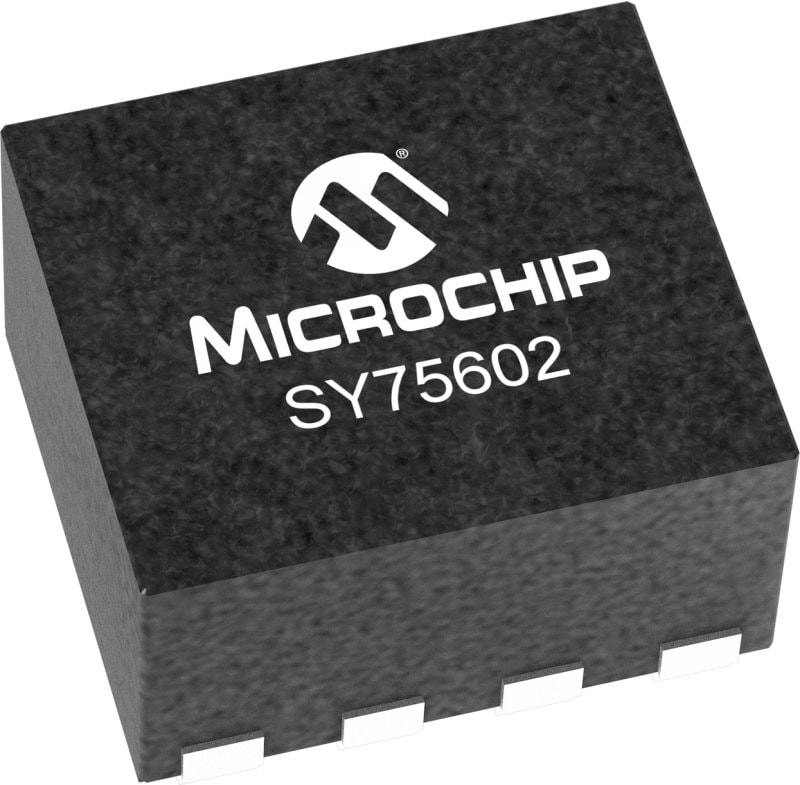

SY75602/03/04/08/12
This series of industrial- and automotive-grade PCIe Gen 1/2/3/4/5/6/7 fanout buffers is available with 4, 8 and 12 outputs.

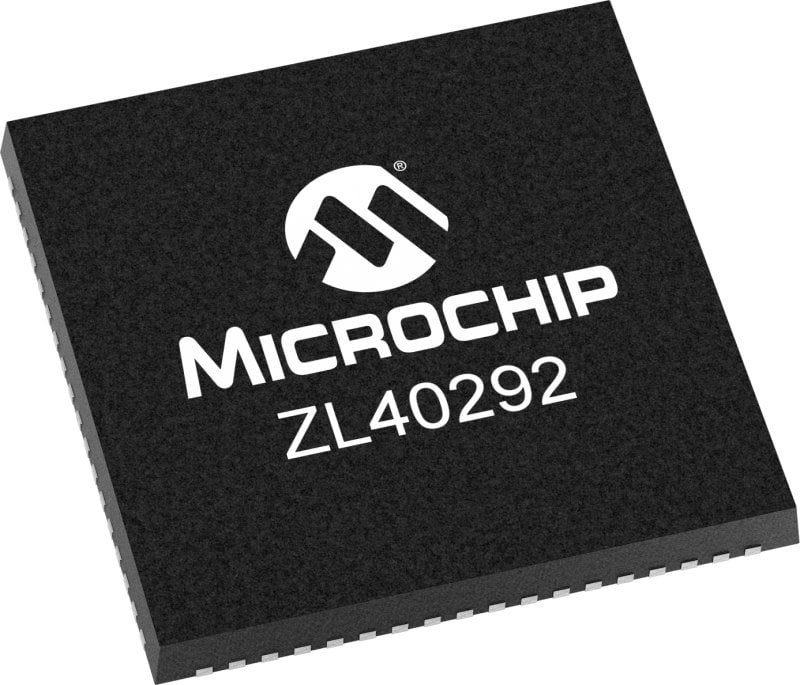

ZL40292/3/4/5
The ZL4029 family of PCIe Gen 1/2/3/4/5/6/7 ultra-low jitter, low-power HCSL fanout buffers is fully compliant with Intel’s DB2000Q/QL standard.
PCIe Data Transmission Overview: An Introduction to Timing Applications
Learn about the PCIe bus standard and how it is used in different applications. In this e-book, we take a look at:
- A general overview of the PCIe bus standard
- PCIe clock/data architecture and requirements
- PCIe clocks used in automobiles and data centers
Product Selection Resources
Treelink Product Navigation
This discovery tool provides an extensive overview of our products. Simply open the selection tool and click on the blocks for the product categories to navigate down to the details about individual products.
Cross Reference Tool
The Cross Reference Tool within ClockWorks® Configurator allows you to enter the name of a company or one of their part numbers to see a list of comparable Microchip products.
Customize Your Device
With just a few clicks, you can program your devices to any combination of frequency, temperature, ppm and package size to meet your specific application’s requirements. You can also use this tool to download customized data sheets and order custom samples with a 48-hour turnaround.
