Embedded Pulse Per Second (ePPS) Solutions

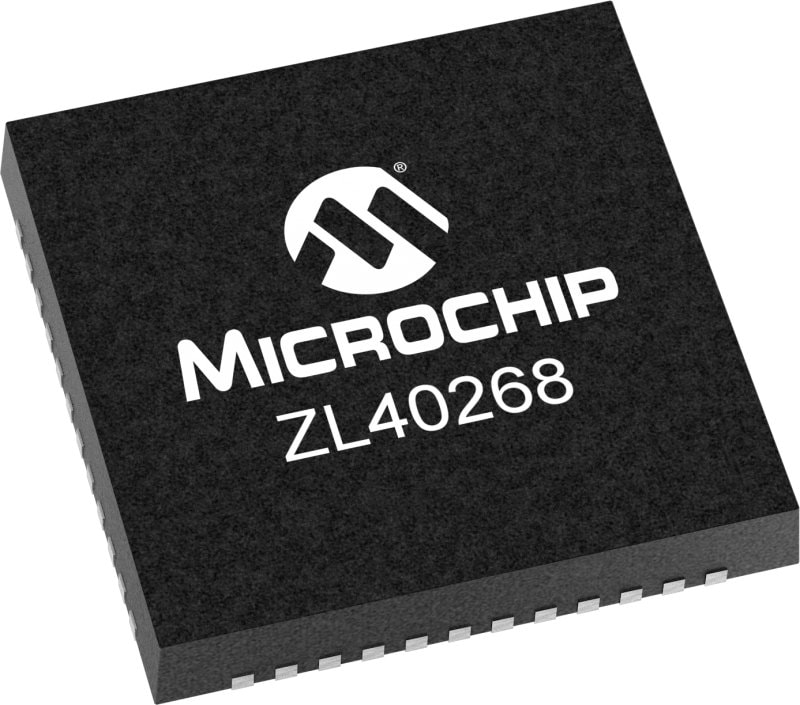

Low-Skew, Low-Jitter Differential ePPS Fanout Buffer

This clock fanout buffer offers ultra-low additive jitter of just 24 fs and supports frequencies up to 1.5 GHz. Well suited for PCIe^® clock trees Gen 1–5, it features eight outputs, hot-swappable capabilities and control via individual output pins or I²C interface.

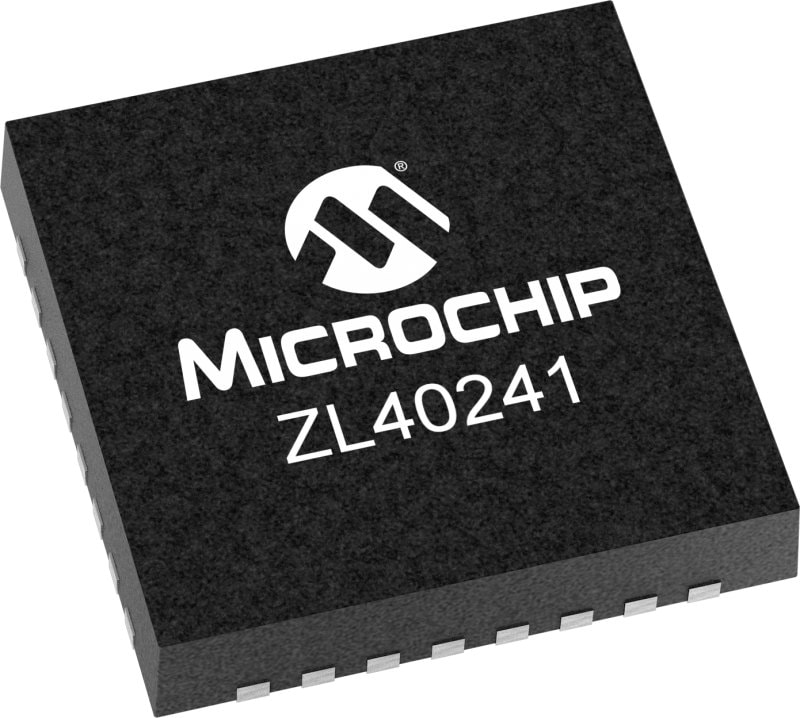

Low-Skew, Low-Jitter LVCMOS ePPS Fanout Buffer

This LVCMOS clock fanout buffer offers ultra-low additive jitter of 17 fs and supports frequencies up to 200 MHz. It has ten LVCMOS outputs, which can be powered from a 3.3V, 2.5V, 1.8V or 1.5V supply. Output can be synchronously enabled/disabled via an OE pin.

SyncE Network Synchronizer

Containing dual DPLL clock channels, three DPLLs for advanced modes and five low-jitter synthesizers, its features also include ePPS, fast boot, partial reset and cascading DPLL. This product is well suited for 5G DU/CU server applications with GPS/GNSS synchronization.

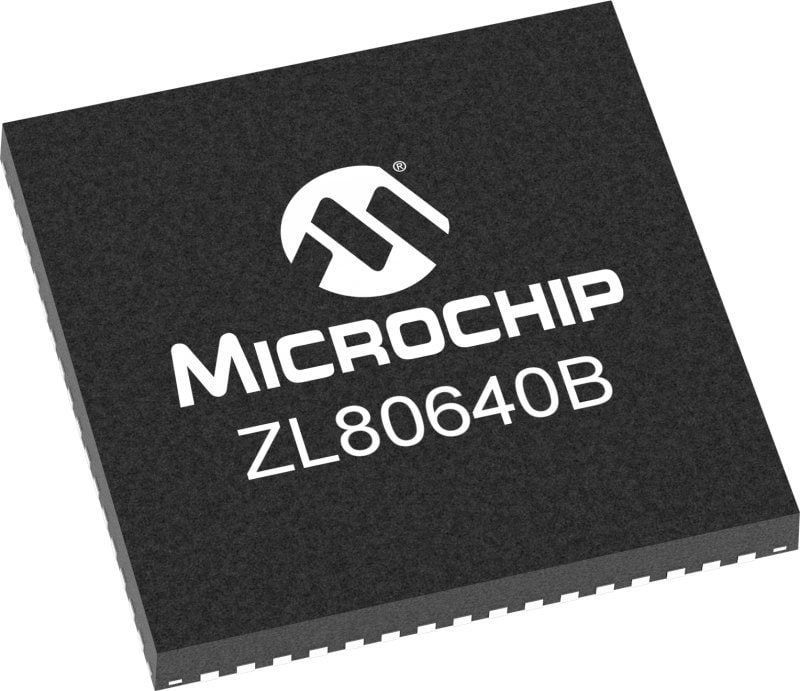

ePPS TimeBuffer

This ePPS TimeBuffer features four inputs and 12 outputs, providing reliable time signal fanout with ePPS and smooth ref-sync locking. Intended for server-based 5G DU/CU applications, it can be integrated into OCP NIC or PCIe daughter cards or deployed in large telecom chassis systems.

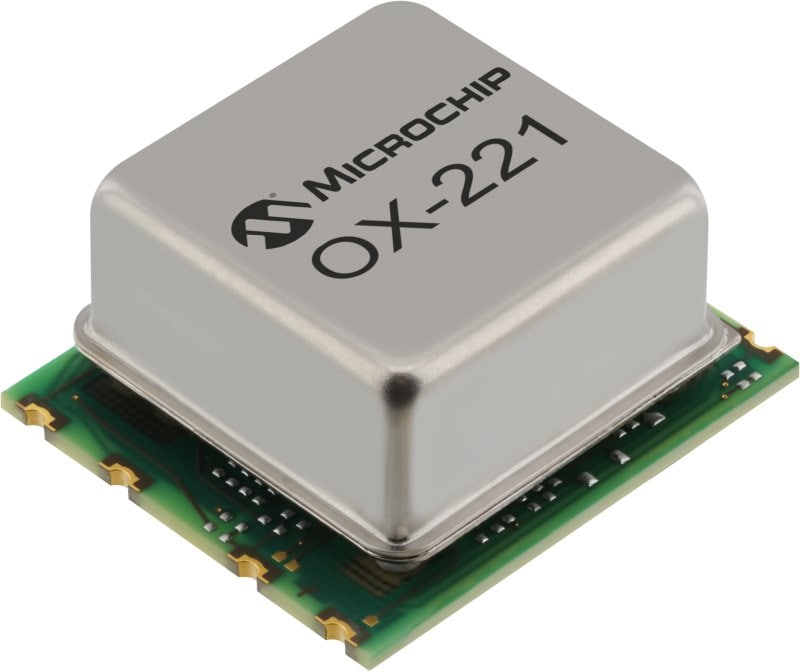

High-Stability Crystal Oscillator

A high-performance Oven Controlled Crystal Oscillator (OCXO) in a 22 × 25 SMD hermetically sealed package, this device delivers excellent frequency stability, slope and holdover performance for 5G base stations and 1588 applications.

• No extra traces are required on the backplane; no upgrade is necessary
• 1 PPS and clock signals are always aligned automatically
• Non-ePPS PLLs only see clock rising edges; manipulation of falling edge has no effect
• Microchip ePPS line card PLLs lock to clock rising edges and decode 1 PPS position

• Data center servers (rack and blade)
• Telecom: 5G, mobile, fronthaul, backhaul
• Edge computing
• QSFP optical modules

• QSFP-DD MSA
  • Revision 7.1, June 25, 2024
• OCP NIC 3.0 Design Specification 3
  • Version 1.5.0, September 20, 2024
