Overview
This product is marked for phaseout. Please use TPG100010-G3 for new designs.

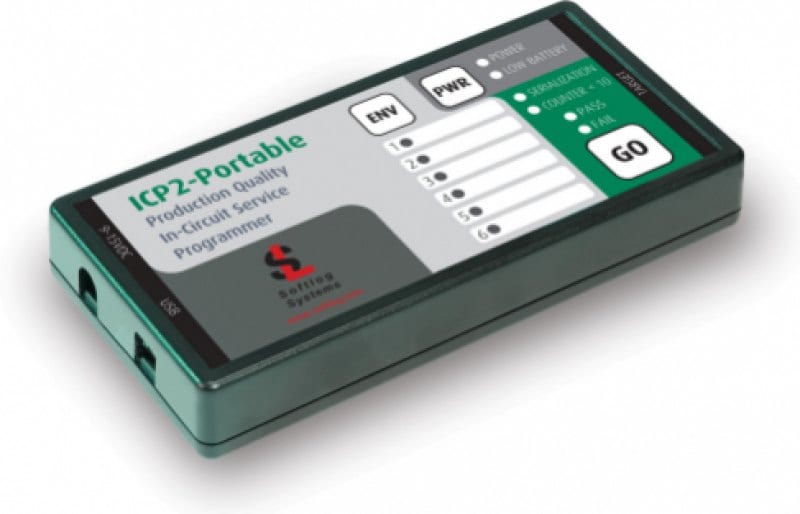

The Softlog ICP2PORT-P Production Quality In-Circuit Service Programmer is specially designed to meet your service programming needs. This compact, battery-powered device supports up to six different programming environments, making it an ideal, low-cost solution for field upgrades.
Note:All technical support and warranty service will be provided by Softlog. You cancontact them at support@softlog.com.
- Fast programming of Microchip® 8-bit PIC® MCUs, 16-bit PIC MCUs and dsPIC® DSCs, and serial EEPROMs
- On-board 4MB flash memory for non-volatile storage of 6 environments
- Supports 3 serialization schemes: sequential, random, and user file (1 to 8 bytes)
- Vdd and Vpp overload protection protects programmer and devices to be programmed
- Power supply: 3 AAA batteries, USB or power adapter
- Configurable counter allows control of the number of upgrades performed
- Programmable Vdd (2.0 to 5.5V) and Vpp (2.0 to 13.5V)
- Programmable clock/data speed (500KHz to 2.5MHz)
- Programmable delay between Vdd and Vpp (0.1 to 250ms)
- Programmable Vdd source (programmer or target)
- Vdd current limit: 50 mA
- Prevents damage to connected microcontroller in case of power ON and power OFF
