Overview
This product is marked for phaseout. Please use TPG100004-G3 for new designs.

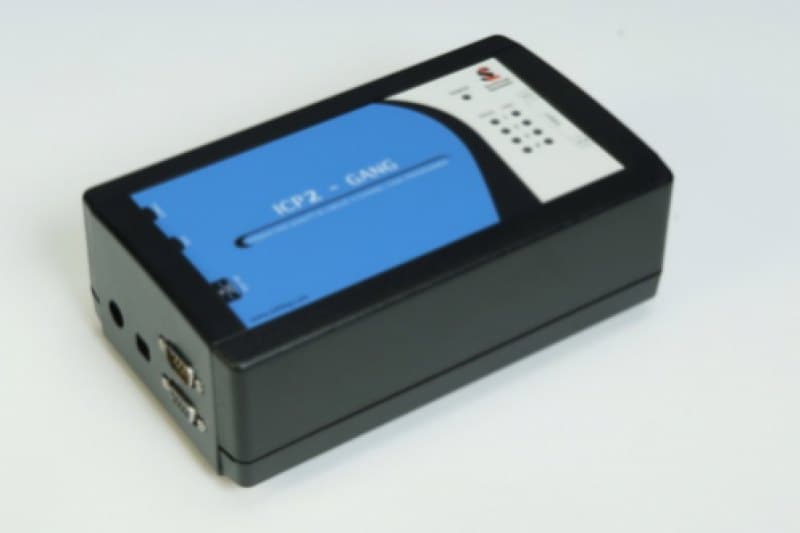

The Softlog ICP2GANG-DP Production Quality In-Circuit 4 Channel GANG Programmer is a cost-effective programmer that operates with a PC or as a standalone unit.
Note:All technical support and warranty service will be provided by Softlog. You cancontact them at support@softlog.com.
- Fast programming of Microchip® 8-bit PIC® MCUs and serial EEPROMs
- Secure programming feature dramatically reduces the risk of unauthorized reconstruction of hex files
- Administrative user can limit how many times a hex file can be programmed

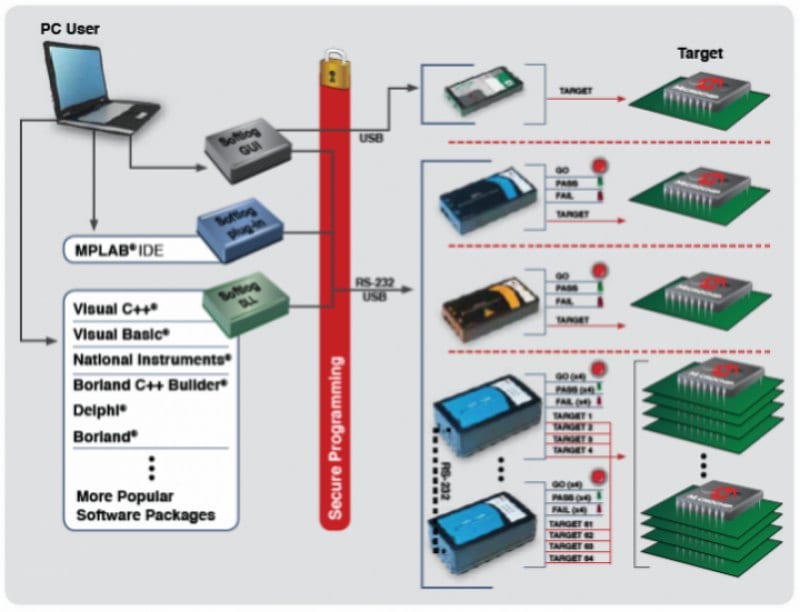

- Windows® DLL functions and command line interface for automatic programming
- Supports 4 serialization schemes: sequential, random, pseudo-random, and user file (1 to 8 bytes)
- 250mA Vdd drive current (40mA if powered from USB only)
- Tests Vdd and Vpp for overload with indication by software
- Wired standalone programming via 3 lines (Enter/ Pass/ Fail)
- Programmable Vdd source (ICP2 or target)
- Programmable Vdd (2.0 to 5.5V)
- Programmable Vpp (2.0 to 13.5V)
- Programmable delay between Vdd and Vpp (0.1 to 250ms)
- Programmable clock/data speed (500KHz to 2.5MHz)
- 1 MByte of on-board flash memory

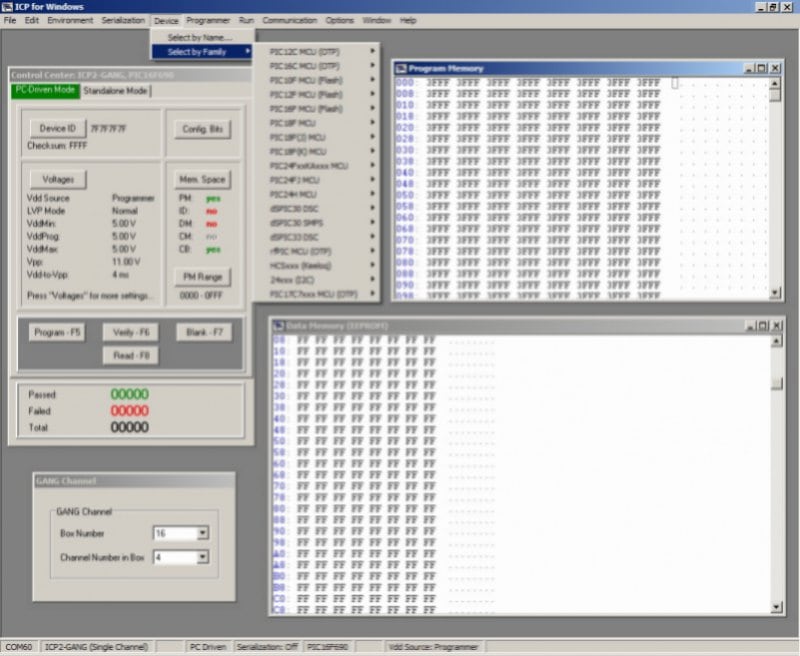

- Fully integrated into MPLAB IDE® via plug-in
Cannot load image!
Documentation
Filter by Document Type
Search Documentation
|
Title
|
Document Category
|
|||
|---|---|---|---|---|
| Softlog Programmers DLL Description | User Guide | Download | ||
| Softlog Programmers User Guide | User Guide | Download | ||
| Softlog Programmers Family Product Line | Brochures | Download | ||
| Softlog Programmers List of Supported Devices | User Guide | Download |
