Part Number: TMIK031

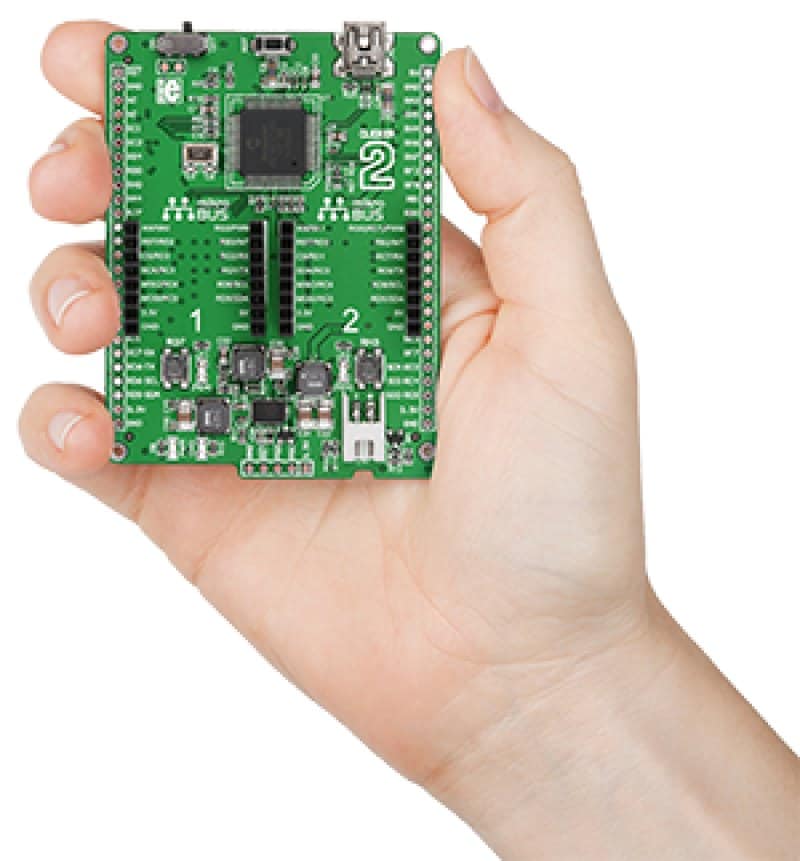

CLICKER 2 FOR PIC18FJ

  • PIC18F87J50: 12 MIPS of operation, 128 KB program memory, 3.904 bytes RAM
  • 52 programmable GPIOs
  • Two mikroBUS host sockets
  • USB Mini-B connector
View Purchasing Options
Contact Us

Overview

clicker 2 for PIC18FJ is a compact development kit with two mikroBUS™ sockets for click board connectivity. You can use it to quickly build your own gadgets with unique functionalities and features. It carries an 8-bit PIC18F87J50 microcontroller with a built-in USB-HID bootloader that makes it easy to program. A mikroProg connector is also available. Whichever way you upload the firmware, you can turn clicker 2 into a standalone gadget because it has a li-po battery connector. The battery (sold separately) can be charged via USB thanks to the LTC® 3586-2 power management IC. Additional features include 2 x2 6 connection pads on the sides of the board, and some buttons, switches and LEDs.
