Part Number: TC115EV

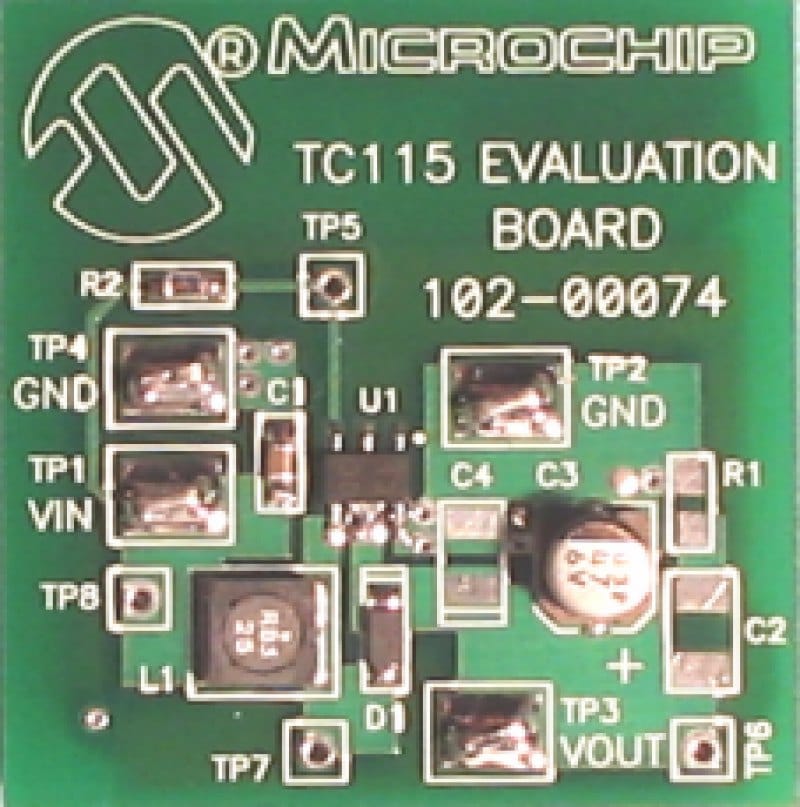

TC115 PFM/PWM BOOST CONVERTER EVALUATION BOARD
- Input voltage range: 0.9V to 3.0V
- Regulated 3.0V output voltage
- Automatic PFM/PWM modes of operation
- Maximum output current: 110 mA
Overview
This product is no longer available for sale. See alternative: ADM00458
The TC115 PFM/PWM Boost Converter Evaluation Board is a complete, step-up, switch-mode, dc-dc power converter. The TC115 PFM/PWM Boost Converter Evaluation Board generates a regulated 3.0V output at load currents up to 110 mA. Different output voltages are obtainable by replacing the fixed 3.0V output TC115 with a fixed 3.3V or 5.0V device. The evaluation board requires the use of an external input voltage source (0.9V – Vout). The TC115 PFM/PWM Boost Converter Evaluation Board is provided with an aluminum electrolytic output capacitor. However there exist additional surface-mount pads to evaluate tantalum or ceramic capacitors.
The TC115 PFM/PWM Boost Converter Evaluation Board is a complete, step-up, switch-mode, dc-dc power converter. The TC115 PFM/PWM Boost Converter Evaluation Board generates a regulated 3.0V output at load currents up to 110 mA. Different output voltages are obtainable by replacing the fixed 3.0V output TC115 with a fixed 3.3V or 5.0V device. The evaluation board requires the use of an external input voltage source (0.9V – Vout). The TC115 PFM/PWM Boost Converter Evaluation Board is provided with an aluminum electrolytic output capacitor. However there exist additional surface-mount pads to evaluate tantalum or ceramic capacitors.
