Overview

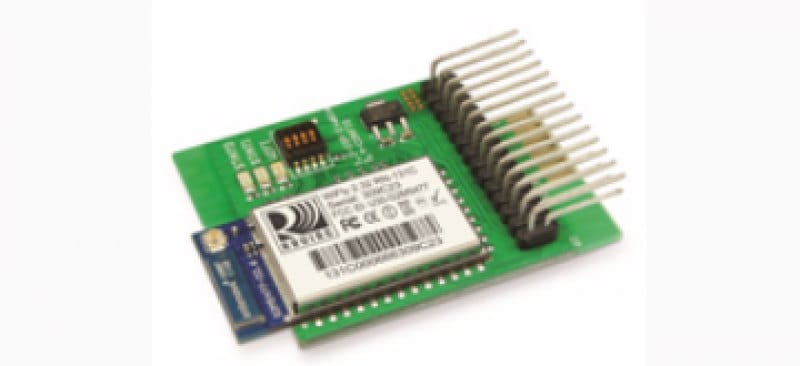

The RN-131-PICtail™/ PICtail Plus Daughter Board allows customers to easily develop Wi-Fi applications using Microchip’s 8, 16 and 32-bit PIC® microcontrollers. Includes a fully integrated TCP/IP stack allowing for a simple serial to Wi-Fi connection to the microcontroller.
Also see RN-171-PICtail
- FCC/CE/IC certified 2.4 GHz IEEE 802.11b/g transceiver
- Plugs into Microchip’s Explorer 16 and PIC18 Explorer development boards
- Adds wireless capability to designs targeting the Microchip development eco-system.
- Compatible with 4, 8, 16, and 32-bit MCUs
- Ultra-low power: 4 µA sleep, 40 mA Rx, 210 mA Tx
- Configurable transmit power
- On-board ceramic chip antenna
- RN-131-PICtail Daughter Board
- 2 jumpers (for use with the PIC18 Explorer board only)
Cannot load image!
Documentation
Filter by Document Type
Search Documentation
|
Title
|
Document Category
|
|||
|---|---|---|---|---|
| RN131/171 PICtail/PICtail Plus Daughter Board User Guide | User Guide | Download |
