Overview

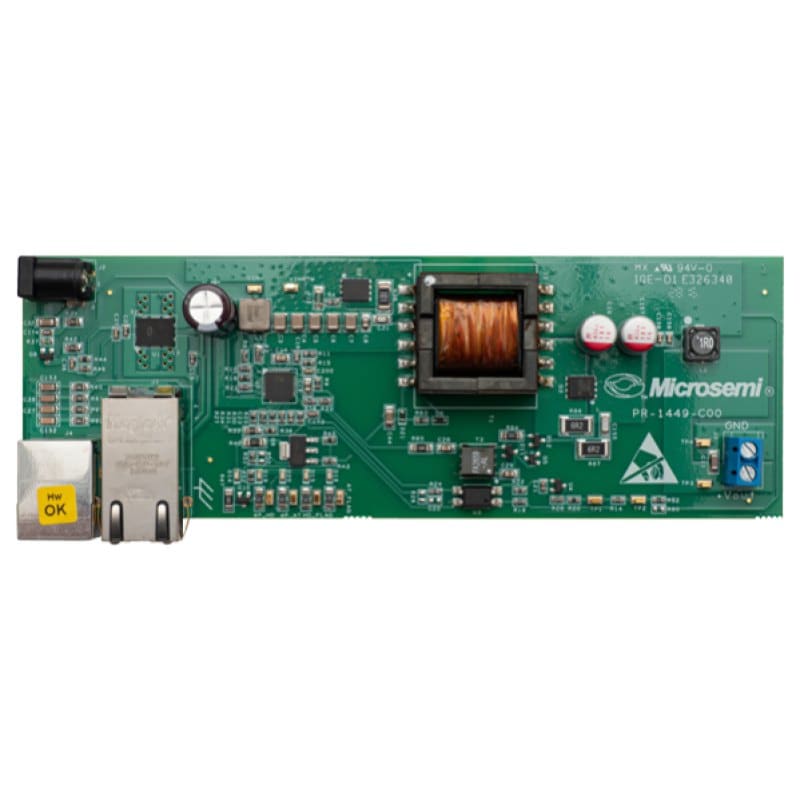

The PD70211EVB51F-12 evaluation board provides designers with an environment needed for evaluating the performance and implementation of PD applications based on PD70211 controller. The board is using a single PD controller, PD70211ILQ, to support the Detection, Class, and Power Supplying phases on the 4 pairs of the Cat5 cable. The board supports sync detection of the 4 pairs. PD70211ILQ supports the current of the HDBaseT over 4 pairs, which is more than twice the power of a standard IEEE 802.3at Type 2 interface.
- Featuring PD70211 and PD70224
- IEEE 802.3af/at/Dual-AT/POH standard compliant
- 51W - 12V / 4.25A output voltage / current
- Flyback topology Wall adaptor support
- Power is supplied through the 4-pairs of the Cat5 cable
- Wall adapter input – standard barrel jack available for connecting to an external 48V wall adapter
- Data pass-through connector
- On board LED indicators: PSE class type; 2,3,4 and 6-events
- On board Power Good LED indicator which may be configured to monitor
- PD Front End or VPP UVLO
- Ta: 0° to +70°C (with derating curve)
- RoHS compliant
