Overview

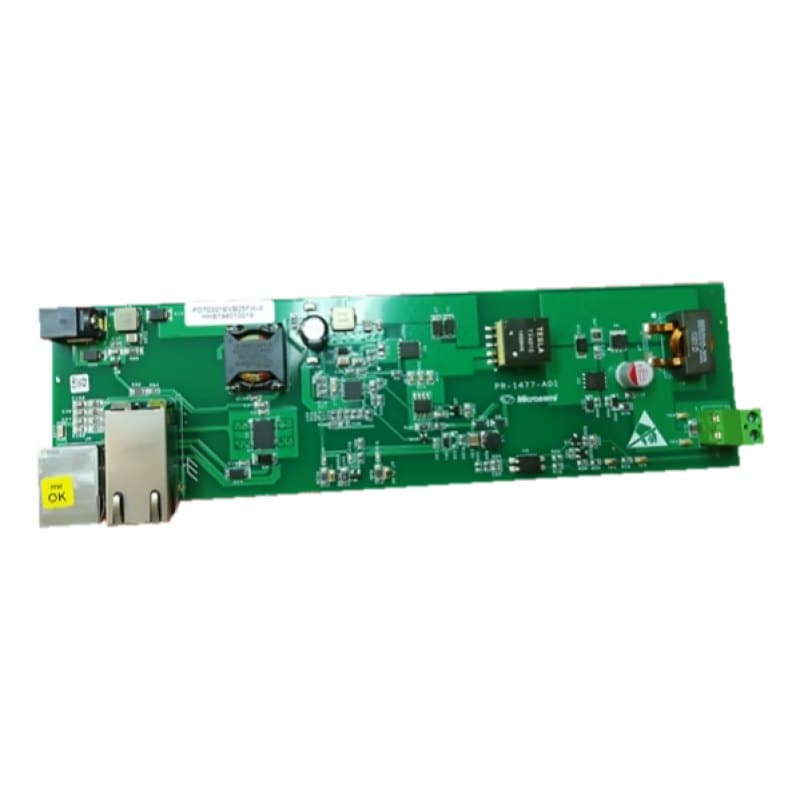

The PD70201EVB25FW-3 evaluation board provides designers with an environment needed for evaluating the performance and implementation of PD applications based on PD70201 controller.The board is using a single PD controller, PD70201ILQ, to support the detection, class, and power supplying phases on the 4 pairs of the Cat5 cable. The board supports sync detection of the 4 pairs. PD70201ILQ supports the current of the HDBaseT over 4 Pairs, which is more than twice the power of a standard IEEE 802.3at Type 2 interface.
- Featuring PD70201
- IEEE 802.3af/at standard compliant
- 25W - 3.3V / 7.5A output voltage / current
- Active clamp forward topology
- Power is supplied through the 4-pairs of the Cat5 cable
- Wall adapter input – standard barrel jack available for connecting to an external 48-54V wall adapter
- Data pass-through connector
- On board AT detected LED indicator
- On board power good LED indicator
- TA= -40° to +70°C
- RoHS compliant
