Part Number: PD70201EVB25F-5

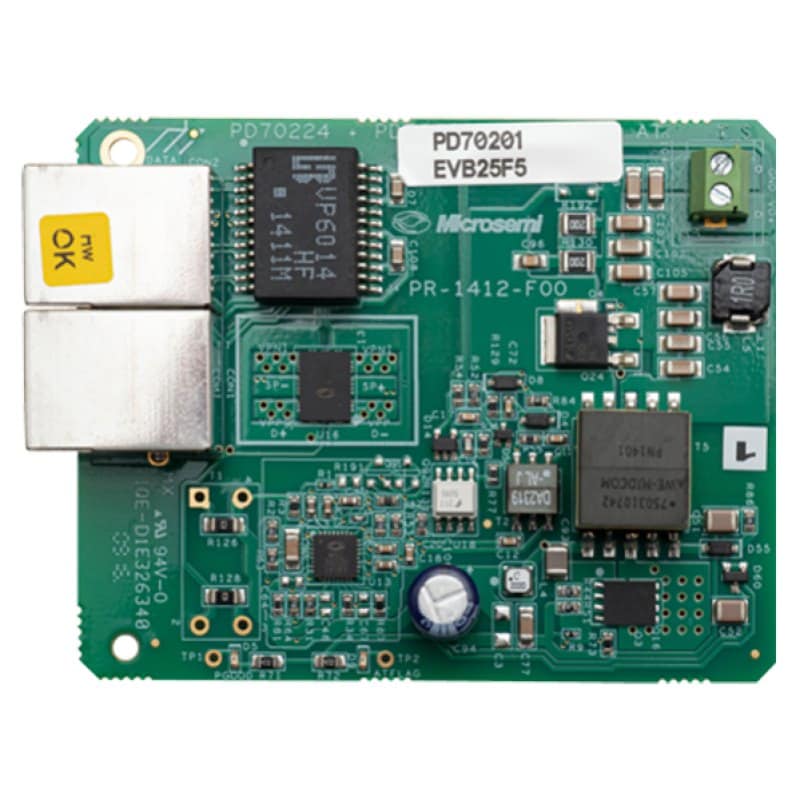

PD WITH PD70201 5V 5A, FB
- Featuring PD70201
- IEEE 802.3af/at standard compliant
- 25W - 5V / 5A output voltage / current
- Flyback topology
- Two RJ45 connectors (data and power in, data out)
- Output voltage connector
- On board power good LED indicator
- On board AT detected LED indicator
- Pulse transformer for routing the data to PD application to enable full PD evaluation
- Evaluation board working temperature: 0°C to +70°C
- RoHS compliant
Overview
The PD70201EVB25F-5 evaluation board provides designers with the environment needed for evaluating the performance and implementation of PD applications based on the PD70201 device. The board uses a single PD device, PD70201ILQ, to support the detection, class, and power supplying phases on the 2/4 pairs of the Cat5 cable. PD70201ILQ supports a standard IEEE 802.3at Type 2 interface.
