Part Number: MIKROE-5543

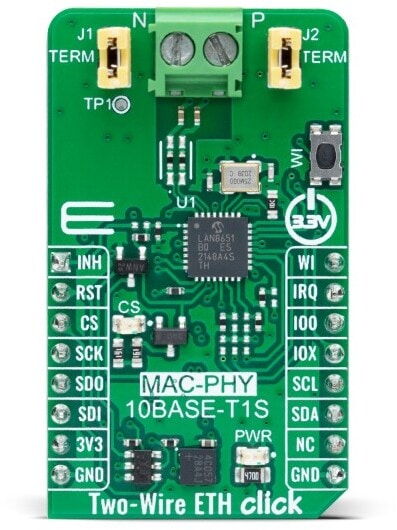

Two-Wire ETH Click

Overview

Two-Wire ETH Click is a compact add-on board with the purpose of a generic interface to many third-party processors in 10BASE-T1S applications. This board features the LAN8651, a low-power single-port 10BASE-T1S MAC-PHY Ethernet Controller with SPI from Microchip. The LAN8651 combines a Media Access Controller (MAC) and an Ethernet PHY to enable low-cost MCUs access to 10BASE-T1S networks (allows for creating both multidrop and point-to-point network topologies). The simultaneous transfer of both Ethernet transmit and receive packets between the station controller and the LAN8651 is performed over a high-speed Serial Peripheral Interface (SPI), according to the OPEN Alliance 10BASE-T1x MAC-PHY Serial Interface specification. This Click board™ is suitable for functional safety-related applications such as industrial control, process/factory automation, sensor/actuator networks operating at high bandwidth, building automation, and more. Two-Wire ETH Click is fully compatible with the mikroBUS™ socket and can be used on any host system supporting the mikroBUS™ standard. It comes with the mikroSDK open-source libraries, offering unparalleled flexibility for evaluation and customization. What sets this Click board™ apart is the groundbreaking ClickID feature, enabling your host system to seamlessly and automatically detect and identify this add-on board.
To view this video, please click manage cookies below and accept functional cookies.
Manage Cookies

All Application Notes

Silicon Products

Product
Title
Product
Title
AT24MAC402 2Kb I2C compatible 2-wire Serial EEPROM with Pre-programmed EUI-48™ MAC Address AT24MAC402 2Kb I2C compatible 2-wire Serial EEPROM with Pre-programmed EUI-48™ MAC Address
LAN8651 10BASE-T1S Single Pair Ethernet MAC-PHY LAN8651 10BASE-T1S Single Pair Ethernet MAC-PHY
MIC2790 Supervisor with High-Accuracy, Ultra-Fast Propagation Delay and Capacitor-Programmable Reset Delay MIC2790 Supervisor with High-Accuracy, Ultra-Fast Propagation Delay and Capacitor-Programmable Reset Delay
