Overview

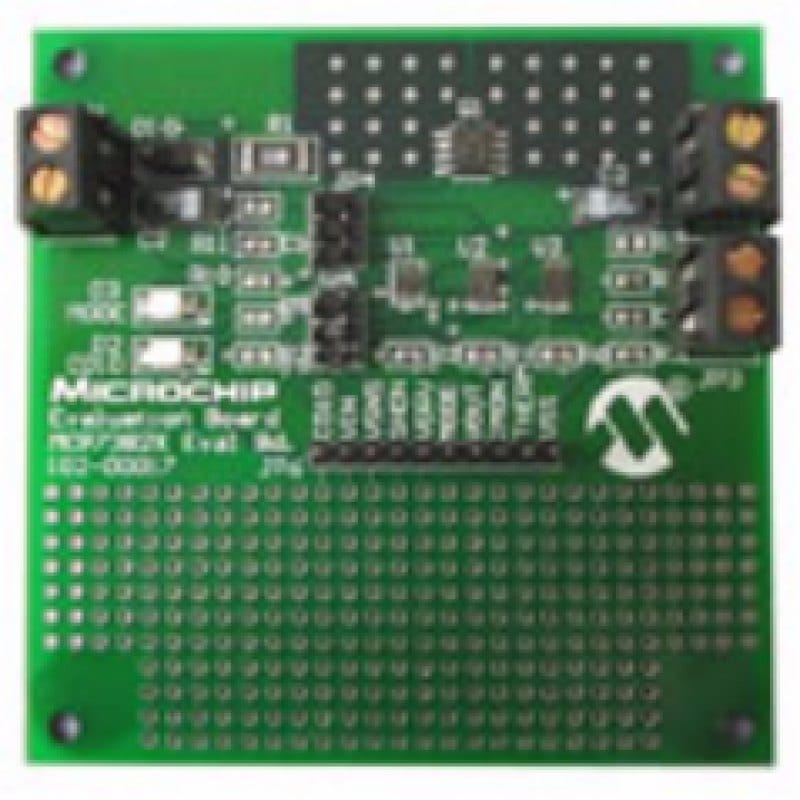

The MCP7382X Li-Ion Battery Charger Evaluation Board features three circuits utilizing the MCP73826, MCP73827 and MCP73828 devices to demonstrate simple, stand-alone, linear charging of single cell Lithium-Ion/Lithium-Polymer battery packs (the battery packs are not included).
- Three single-cell reference designs are provided
- The reference designs demonstrate controlled current charging followed by constant voltage charging
- Constant current output of 1A is provided. Output current can be adjusted by varying a sense resistor
- Prototyping area included to allow interfacing to a microcontroller
The MCP7382X Li-Ion Battery Charger Evaluation Board features three circuits utilizing the MCP73826, MCP73827 and MCP73828 devices to demonstrate simple, stand-alone, linear charging of single cell Lithium-Ion/Lithium-Polymer battery packs (the battery packs are not included).
Cannot load image!
Documentation
Filter by Document Type
Search Documentation
|
Title
|
Document Category
|
|||
|---|---|---|---|---|
| MCP73826 Datasheet | Data Sheets | Download | ||
| MCP73827 Datasheet | Data Sheets | Download | ||
| MCP7382X Evaluation Kit User's Guide | User Guide | Download | ||
| MCP7382x Li-Ion Battery Charger Evaluation Board Gerbers | Board Design Files | Download | ||
| MCP73828 Datasheet | Data Sheets | Download |
