Part Number: MCP6XXXEV-AMP4

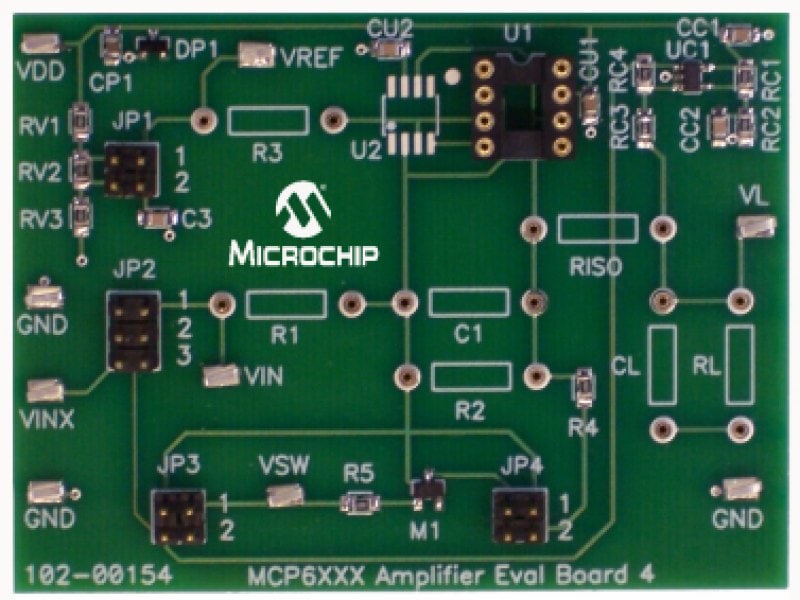

MCP6XXX AMPLIFIER EVALUATION BOARD 4

User Guide: PDF
MCP6XXX Amplifier Evaluation Board 4 User's Guide

Overview

This product is no longer available for sale.

The MCP6XXX Amplifier Evaluation Board 4 is designed to support the inverting integrator circuit.

  • All amplifier resistors and capacitors are socketed
  • Supports all Microchip single op amps:

– 8-pin PDIP package (e.g., MCP6021) is socketed
– 8-pin SOIC package can be accommodated

  • Test points for connecting lab equipment
  • Single supply configuration

N/A

Cannot load image!

Documentation

Filter by Document Type
Search Documentation
Title
Document Category
MCP6021/2/3/4 Data Sheet Data Sheets Download
MCP6XXX Amplifier Evaluation Board 4 User's Guide User Guide Download
MCP6XXX Amplifier Evaluation Board 4 Gerbers Board Design Files Download
