Overview

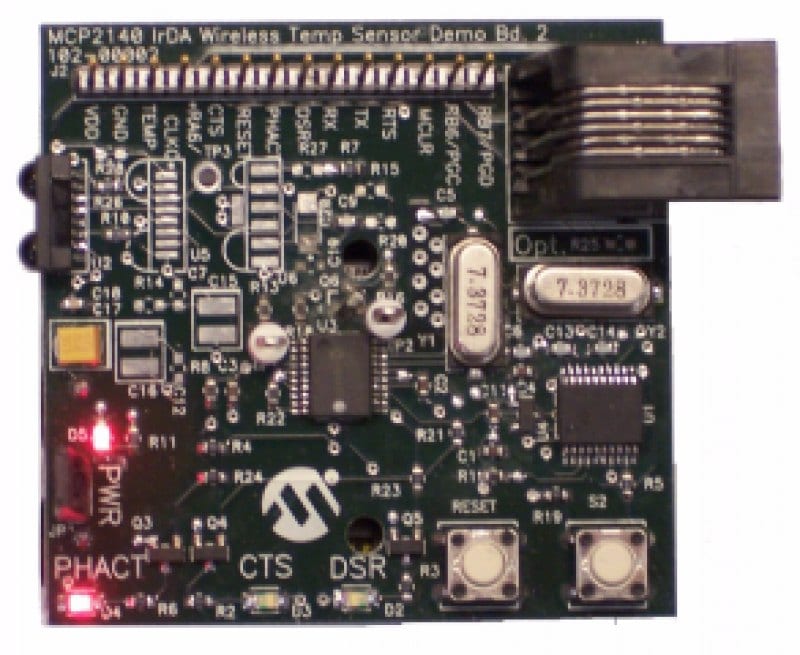

MCP2140 IrDA Standards Wireless Temp Sensor Demo Board demonstrates the MCP2140 device in a real world application. The system designer can use this design as an example of how to integrate an IrDA standard port in their system.
- Demonstrates the MCP2140 IrDA Protocol Controller in a data logging application
- Communicates directly to a laptop computer, Palm or Pocket PC PDA
- Primary device application programs are provided to demonstrate operation (for PC, Palm OS, Pocket PC)
- Demonstrates the MCP2140 IrDA Protocol Controller in a data logging application
- F/W routines transmit TC1047A temperature and other data to a primary device (i.e., Laptop, PDA)
- Reprogrammable PIC18F1320 with ICSP™ (In-Circuit Serial Programming™) interface and ICD header
- Operates on 3 AAA alkaline batteries
N/A
Cannot load image!
Documentation
Filter by Document Type
Search Documentation
|
Title
|
Document Category
|
|||
|---|---|---|---|---|
| MCP2140 Datasheet | Data Sheets | Download | ||
| MCP2140 IrDA Wireless Temp Sensor Demo Board Gerbers | Board Design Files | Download | ||
| MCP2140 IrDA Wireless Temp Sensor Demo Board Firmware | Software Libraries and Firmware | Download | ||
| MCP2140 IrDA Standard Wireless Temperature Sensor Demo Board User's Guide | User Guide | Download |
