Overview

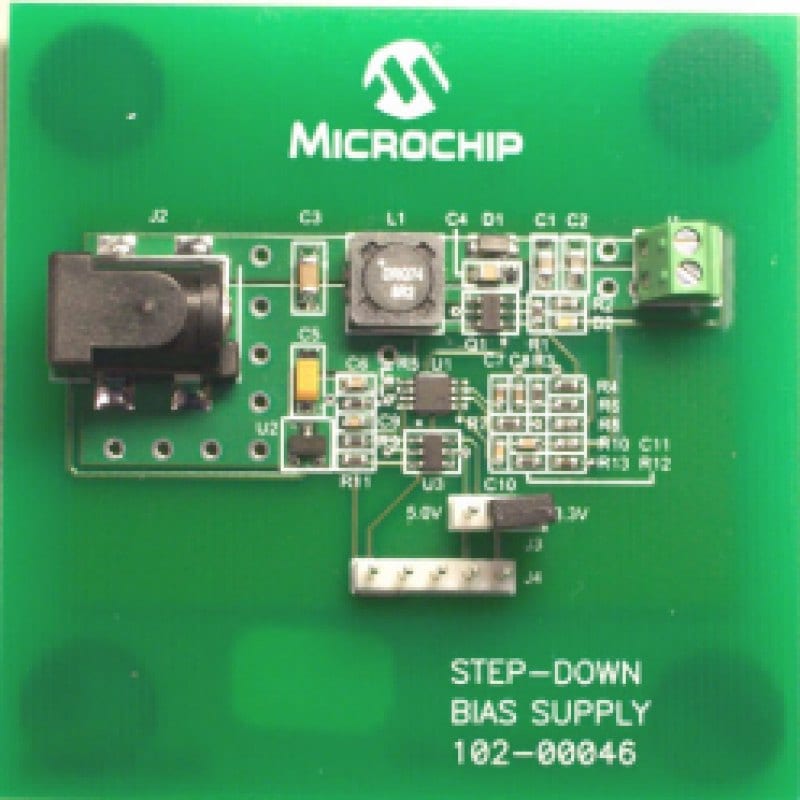

The MCP1630 1A Bias Supply Demo Board is used to evaluate Microchip’s MCP1630 used in a SEPIC power converter application. The MCP1630 1A Bias Supply Demo Board is capable of providing a regulated output from an input voltage of 9V. The regulated output voltage is selectable at 3.3V or 5V. The regulated output remains constant for an output load range of 0A to 1A. An LED indicates the presence of output voltage.
- Selectable Regulated Output Voltage: 3.3V or 5.0V
- Maximum Output Current: 1A
- Fold-back Current Limiting
- Cycle-by-cycle Peak Current Limit.
- Output Present Indicator
- Soft-Start capability by holding the reference voltage low during power up.
- The MCP1630 1A Bias Supply Demo Board has the flexibility to modify the regulated output voltage, optimize the soft-start time, or disable the output by modifying the firmware contained in the PIC10F200.
- Proprietary features can be added by modifying the firmware contained in the PIC10F200.
- The factory programmed source code is available.
N/A
Cannot load image!
Documentation
Filter by Document Type
Search Documentation
|
Title
|
Document Category
|
|||
|---|---|---|---|---|
| MCP1630/MCP1630V Data Sheet | Data Sheets | Download | ||
| MCP1630 1A Bias Supply Demo Board Gerbers | Board Design Files | Download | ||
| MCP1630 1A Bias Supply Demo Board Firmware | Software Libraries and Firmware | Download | ||
| MCP1630 1A Bias Supply Demo Board User's Guide | User Guide | Download |
