Part Number: HV9967BDB1

4W LED DRIVER DEMOBOARD WITH ACCURATE AVERAGE-MODE CONSTANT CURRENT CONTROL

User Guide: PDF
HV9967BDB1 User Guide
View Purchasing Options
Contact Us

Overview

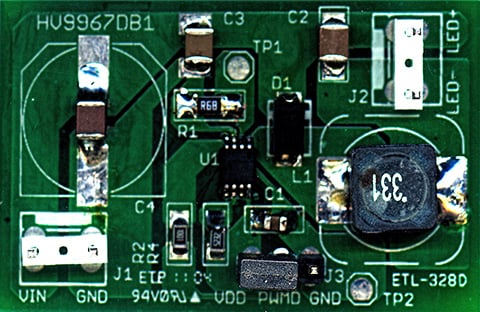

The HV9967BDB1 demoboard is a high-brightness LED driver designed to drive 4 LEDs in series at currents up to 350mA from a 20 - 60V DC input. The demoboard uses the HV9967B in a buck configuration in a constant off-time mode.  The HV9967BDB1 LED driver features tight regulation of the LED current within a few milliamps over the entire range of the input voltage (i.e. 20 - 60VDC).

  • Please download the user guide for more information.

Cannot load image!

Documentation

Filter by Document Type
Search Documentation
Title
Document Category
HV9967BDB1 User Guide User Guide Download
