Part Number: HV9931DB5

UNIVERSAL INPUT, SINGLE HIGH BRIGHTNESS, LED DRIVER DEMOBOARD

Please download the user guide for more information.

Overview

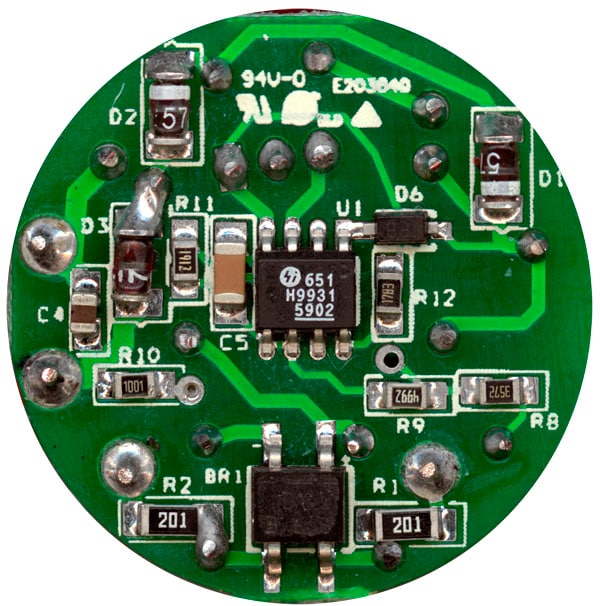

The HV9931DB5 demoboard is a high brightness (HB) LED power driver to supply one HB LED, using the HV9931 IC from either a 110 or 220VAC supply. The HV9931DB5 is ideal for incandescent retrofit applications, as it features a very small size and a low component count.  The HV9931DB5 avoids the use of electrolytic capacitors, which reduce the lifetime of the circuit in high ambient temperatures (which would be found in the base of a bulb). The demo board can be used to test the performance of the HV9931 as a constant current driver to power LEDs.

To view this video, please click manage cookies below and accept functional cookies.
Manage Cookies

All Application Notes

Documentation

Title
Document Id
HV9931DB5 User Guide Download 6a4362cf-492c-4a5b-94c3-555180d11b62
