Overview

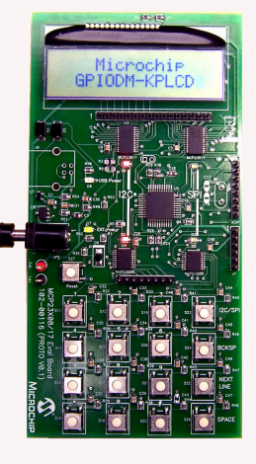

The GPIO Expander Keypad and LCD Demo Board is designed to demonstrate the use of the MCP23S08/17 (SPI interface) and the MCP23008/17 (I2C interface) devices in a keypad and LCD example. The MCP23X17 (16-bit) devices interface to a 2x16 LCD module and the MCP23X08 (8-bit) devices interface to a 4x4 keyed matrix.
- Demonstrates the use of MCP23X08 and MCP23X17 devices for LCD and keypad applications
- Test points allow for easy monitoring of SPI and I2C buses, as well as the keypad and LCD interface to PIC
- ICSP header for the PIC® microcontroller allows users to customize firmware to further evaluate the MCP23X08/17 devices.
- Can be powered from a 3.0V to 5V DC power source (connected to the +5V and GND test points)
N/A
Cannot load image!
Documentation
Filter by Document Type
Search Documentation
|
Title
|
Document Category
|
|||
|---|---|---|---|---|
| MCP23008/MCP23S08 Data Sheet | Data Sheets | Download | ||
| MCP23017/MCP23S17 Data Sheet | Data Sheets | Download | ||
| PIC18F2455/2550/4455/4550 Data Sheet | Data Sheets | Download | ||
| GPIO Expander Keypad and LCD Demo Board User's Guide | User Guide | Download | ||
| GPIO Expander Keypad and LCD Demo Board Firmware | Software Libraries and Firmware | Download | ||
| Unique Features of the MCP23X08/17 GPIO Expanders | Application Notes | Link | Download | |
| I/O Expansion Using the MCP23X08 and PIC10F202 | Application Notes | Link | Download |
