Part Number: EVB8742

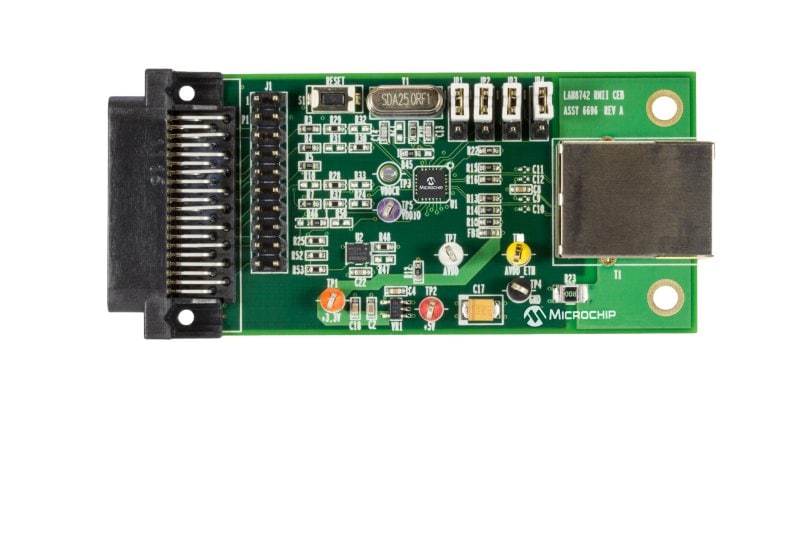

LAN8742 HIGH-SPEED 10/100 ETHERNET TRANSCEIVER CUSTOMER EVAL BOARD (WAKE-ON-LAN)
Overview
The EVB8742 is a PHY Evaluation Board EVB that interfaces a MAC controller to the LAN8742 Ethernet PHY via a standard 40-pin MII connector adapted for using RMII configurations and supports Wake-on-LAN and Cable Diagnostics. The LAN8740 is connected to an RJ-45/Integrated Magnetics Ethernet Jack for 10/100 connectivity.
Documentation
|
Title
|
|||
|---|---|---|---|
| EVB8742 Evaluation Board Gerber Files | Download | ||
| EVB8742 Evaluation Board User Manual | Download | ||
| EVB8742 Evaluation Board Schematic, PDF | Download | ||
| EVB8742 Evaluation Board Schematic, OrCAD | Download | ||
| LAN8742A PHY Schematics | Download | ||
| LAN8742A RMII PCB | Download | ||
| LAN8742A A1 Title Schematic Doc | Download | ||
| EVB-LAN8742A PCB | Download |
