Overview

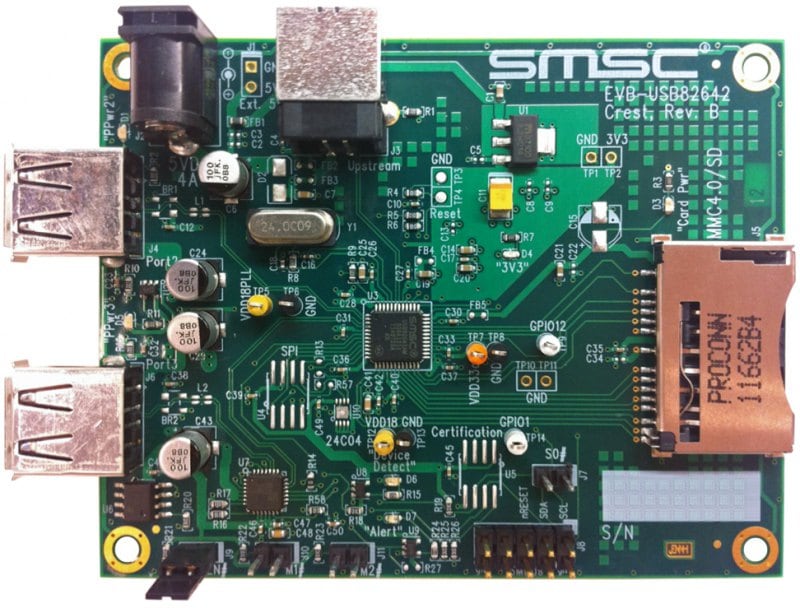

The EVB-USB82642 is a customer evaluation board that contains an Ultra Fast Automotive Grade USB 2.0 Multi-Format Flash Media Controller, a USB 2-port Hub Combo, and a UCS81001 Port Power Controller with Charger Emulation. This evaluation board supports an external certification chip, an SMBus header interface to monitor I2C traffic from the USB to I2C bridge, as well as either an external I2C EEPROM or SPI flash device for customized functionality.
This evaluation board supports an external certification chip, an SMBus header interface to monitor I2C traffic from the USB to I2C bridge, as well as either an external I2C EEPROM or SPI flash device for customized functionality.
Cannot load image!
Documentation
Filter by Document Type
Search Documentation
|
Title
|
Document Category
|
|||
|---|---|---|---|---|
| EVB USB82642 Evaluation Board User Manual | User Guide | Download | ||
| EVB USB82642 Evaluation Board Schematic, PDF | Board Design Files | Download | ||
| EVB USB82642 Evaluation Board Schematic, OrCAD | Board Design Files | Download | ||
| EVB USB82642 Evaluation Board Gerbers | Board Design Files | Download | ||
| EVB USB82642 Evaluation Board Bill of Materials | Board Design Files | Download |
