Overview
This product is no longer available for sale.

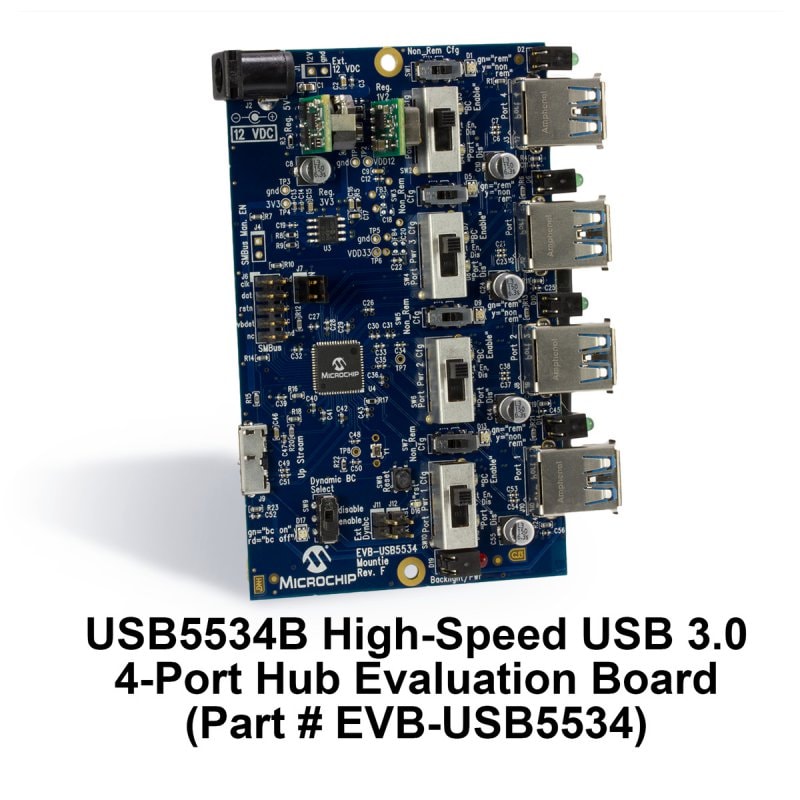

The EVB-USB5534 is a customer evaluation board that features the USB5534B 4-port USB 3.0/2.0 hub. The USB5534B hub supports SuperSpeed SS, Hi-Speed HS, Full-Speed FS, and Low-Speed LS USB signaling for complete coverage of all defined USB operating speeds. All four of the downstream ports are USB 2.0 and USB 3.0 compliant. This evaluation board supports an external SMBus header interface as well as a 2-Mbit SPI flash device for customized functionality.
The USB5534B hub supports SuperSpeed SS, Hi-Speed HS, Full-Speed FS, and Low-Speed LS USB signaling for complete coverage of all defined USB operating speeds.
Cannot load image!
Documentation
Filter by Document Type
Search Documentation
|
Title
|
Document Category
|
|||
|---|---|---|---|---|
| EVB-USB5534_F Evaluation Board Schematic, OrCAD | Board Design Files | Download | ||
| EVB-USB5534_F Evaluation Board Gerber Files | Board Design Files | Download | ||
| EVB-USB5534_F Evaluation Board Bill of Materials | Board Design Files | Download | ||
| EVB-USB5534_F Evaluation Board Schematic, PDF | Board Design Files | Download |
