Part Number: EVB-USB4715

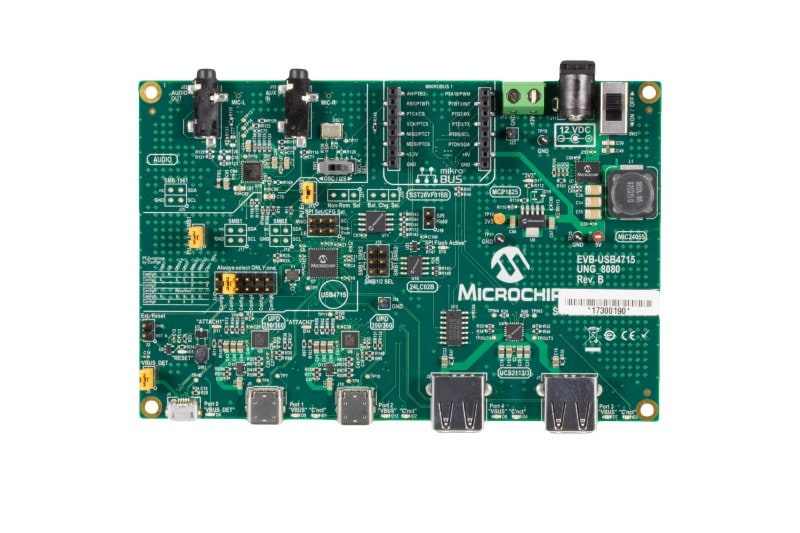

EVB-USB4715 - USB4715 EVALUATION BOARD

User Guide: PDF
EVB-USB4715 Evaluation Kit User's Guide
View Purchasing Options
Contact Us

Overview

USB evaluation board for a four port, SmartHub for USB2.0 Hi-Speed. An evaluation board that enables sub-system connectivity via a USB hub, with IO expansion for UART, GPIO, I2C, and SPI.  Innovative, patented, FlexConnect, on all ports provides for host /device swapping via OTG or host switching so that multiple USB hosts can be enabled in the OEM system architecture. This board includes MIKROE's mikroBUS™ socket, enabling the use of over 1700 application-specific Click boards™.

  • Four port USB2.0 Hi-Speed Smart hub
  • USB bridging for UART, GPIO, SPI, and I2C.
  • mikroBUS™ socket
  • FlexConnect on all ports enables: Host Switching or Host / Device swapping via OTG

Cannot load image!

Documentation

Filter by Document Type
Search Documentation
Title
Document Category
EVB-USB4715 Schematics, PDF Board Design Files Download
EVB-USB4715 Gerber files Board Design Files Download
EVB-USB4715 Bill of Materials BOM Download
EVB-USB4715 Linux ACE Software Libraries and Firmware Download
EVB-USB4715 Design Files, Altium Board Design Files Download
EVB-USB4715 Evaluation Kit User's Guide User Guide Download
EVB-USB4715 BOM BOM Download
EVB-USB4715 Schematic Schematics Download
