The USB3740 family of Hi-Speed USB switches were specifically designed to enable a range of applications to achieve single-port connectivity. Their design provides a substantial 1GHz of bandwidth, allowing for the passage of robust USB 2.0 signals. The USB3740 is a high-performance USB 2.0 switch providing excellent flexibility with very low current consumption in an extremely small package.

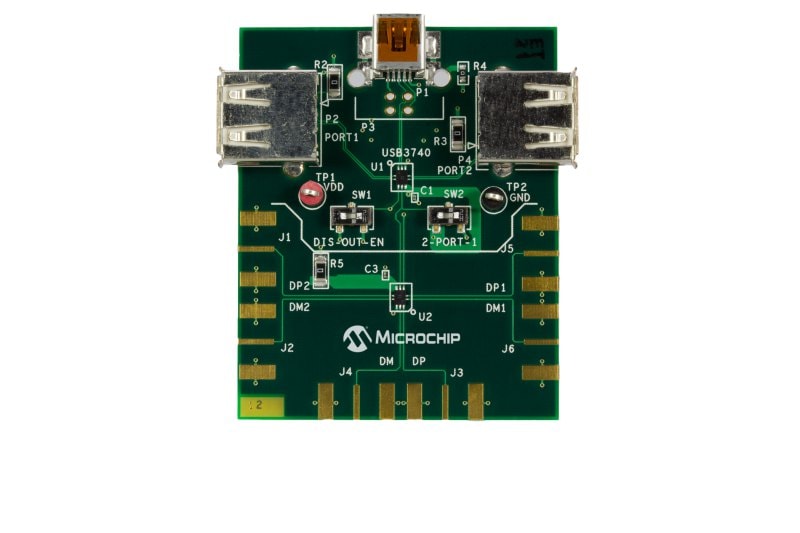

USB3740 High Speed Switch Evaluation Board
Cannot load image!
Documentation
Filter by Document Type
Search Documentation
|
Title
|
Document Category
|
|||
|---|---|---|---|---|
| EVB-USB3740 Evaluation Board Schematic, PDF | Board Design Files | Download | ||
| EVB-USB3740 Evaluation Board Schematic, OrCAD | Board Design Files | Download | ||
| EVB-USB3740 Evaluation Board Bill of Materials | Board Design Files | Download | ||
| EVB-USB3740 Evaluation Board Gerber Files | Board Design Files | Download | ||
| EVB-USB3740 Evaluation Board User Manual | User Guide | Download | ||
| USB Brochure | Brochures | Download |
