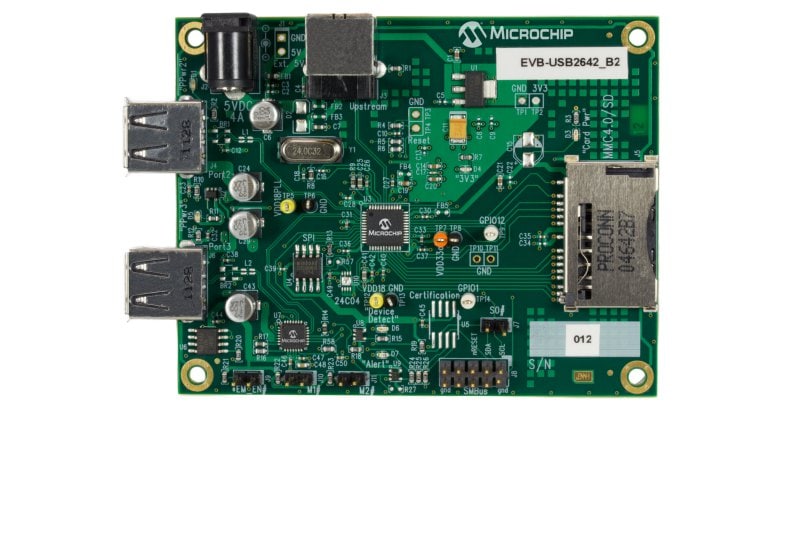

The EVB-USB2642 is a customer evaluation board that contains an Ultra Fast USB 2.0 Multi-Format Flash Media Controller, a USB 2-port Hub Combo, and a UCS81001 Port Power Controller with Charger Emulation. This evaluation board supports an external certification chip, an SMBus header interface to monitor I²C traffic from the USB to I²C bridge, as well as either an external I²C EEPROM or SPI flash device for customized functionality.
This evaluation board supports an external certification chip, an SMBus header interface to monitor I²C traffic from the USB to I²C bridge, as well as either an external I²C EEPROM or SPI flash device for customized functionality.
Cannot load image!
Documentation
Filter by Document Type
Search Documentation
|
Title
|
Document Category
|
|||
|---|---|---|---|---|
| EVB USB2642 Evaluation Board Schematics, PDF | Board Design Files | Download | ||
| EVB USB2642 Evaluation Board Schematic, OrCAD | Board Design Files | Download | ||
| EVB USB2642 Evaluation Board Gerbers | Board Design Files | Download | ||
| EVB USB2642 Evaluation Board Bill of Materials | Board Design Files | Download | ||
| EVB-USB2642 Evaluation Board User's Guide | User Guide | Download | ||
| USB Brochure | Brochures | Download |
