Overview

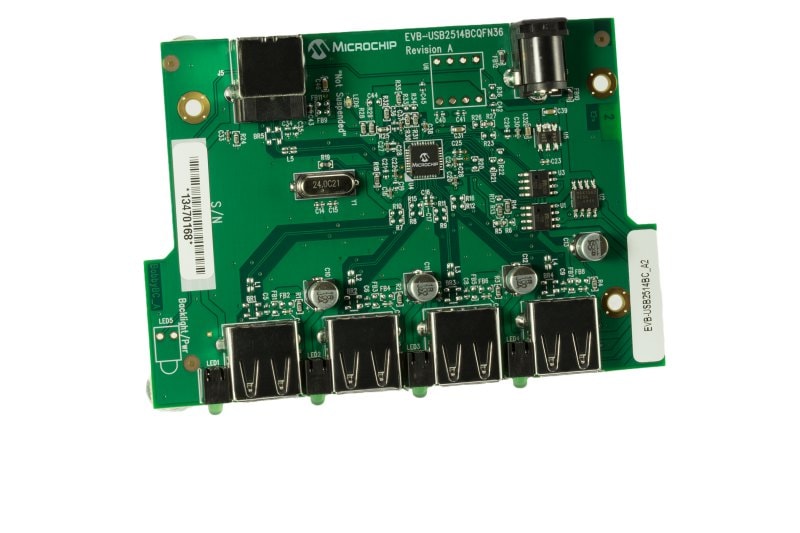

The Microchip USB2514B MultiTRAK™ is a Low-Power, Full-Featured, OEM configurable, Hi-Speed USB 2.0 compliant hub with four downstream ports. Each of these downstream ports in the USB2514B device is capable of supporting battery charging per the USB Battery Charging Specification, Revision 1.1. The EVB-USB2514BC Evaluation Board demonstrates a standalone application for the hub with advanced power saving options and configurable port assignments. It is designed to support internal default configuration settings and an external optional I²C EEPROM for custom configured functionality.
USB2514B High Speed USB 2.0 Multi TT 4 Port Hub with Battery Charging Support
Cannot load image!
Documentation
Filter by Document Type
Search Documentation
|
Title
|
Document Category
|
|||
|---|---|---|---|---|
| EVB-USB2514BC Evaluation Board Gerber Files | Board Design Files | Download | ||
| EVB-USB2514BC Evaluation Board Bill of Materials | Board Design Files | Download | ||
| EVB-USB2514BC Evaluation Board Schematic, PDF | Board Design Files | Download | ||
| EVB-USB2514BC Evaluation Board Schematic, OrCAD | Board Design Files | Download | ||
| EVB-USB2514BC Evaluation Board Users Guide | User Guide | Download |
