Part Number: EV96N38A
EVB-PCI11400
- 132-pin Dual-row QFN (DQFN) RoHS compliant package
- Four USB-IF Compliant Downstream USB host ports: - One Type-C USB 3.2 Gen 2 SuperSpeed+ downstream port - Three Type-A USB 2.0-only downstream ports
- One downstream PCIe Gen 4 (1 lane * 8GT/s) port on a PCIe x4 slot connector
- Four channels of RS-232/485
- Onboard I2C serial EEPROM for EVB system configuration and function customization
- One optional I2C or SPI target configuration bus
- Operates from a single voltage (+12.0 V, regulated) external power supply
- Onboard 25 MHz crystal
- Single onboard +5 V, regulator
- Single onboard +3.3 V, regulator
- Single onboard +1.1 V, regulator
- USB Port Power LED indicators
- Regulator LED indicators for 5V, 3.3V, and 1.1V outputs
Overview

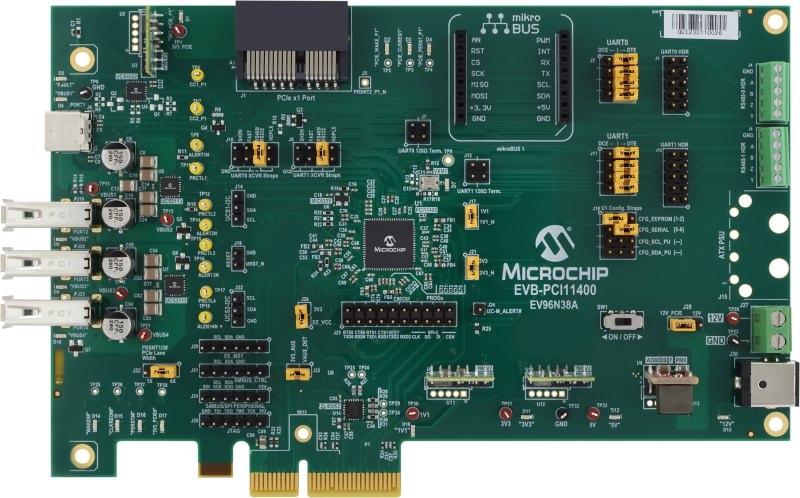

The EVB-PCI11400 is a demonstration and evaluation platform that provides the necessary requirements and interface options for evaluating the PCI11400, a single-chip PCIe switch with an integrated USB 3.2 Gen 2 host controller and programmable I/O options (I2C/SPI/UART/GPIO), on a six-layer RoHS-compliant Printed Circuit Board (PCB). This kit allows the user to gain an understanding of the product and accelerate the integration of the EVB-PCI11400 Evaluation Kit into the user’s design.
The evaluation platform includes four USB-IF compliant downstream USB host ports: One (1) USB Type-C at USB 3.2 Gen 2 SuperSpeed+ port and three (3) USB Type-A at USB 2.0 High-Speed.
This evaluation platform also includes one (1) downstream PCIe Gen 4 8GT/s switch port (1 lane * 8 GT/s) and implements four (4) channels of RS-232/485 connectivity. The EVB-PCI11400 demonstrates its PCIe, USB Host, and I2C/SPI/UART/GPIO driver compatibility in Linux® and Microsoft® Windows® 10.
