Part Number: EV82S16A

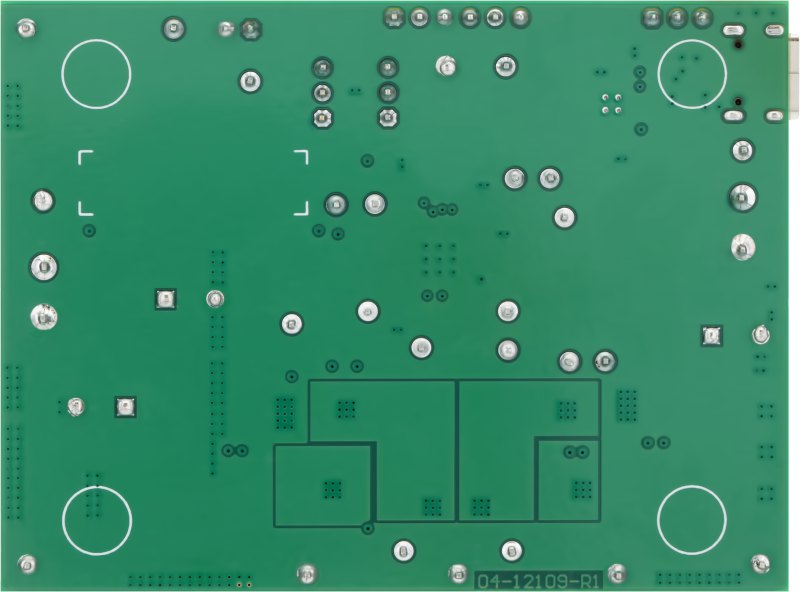

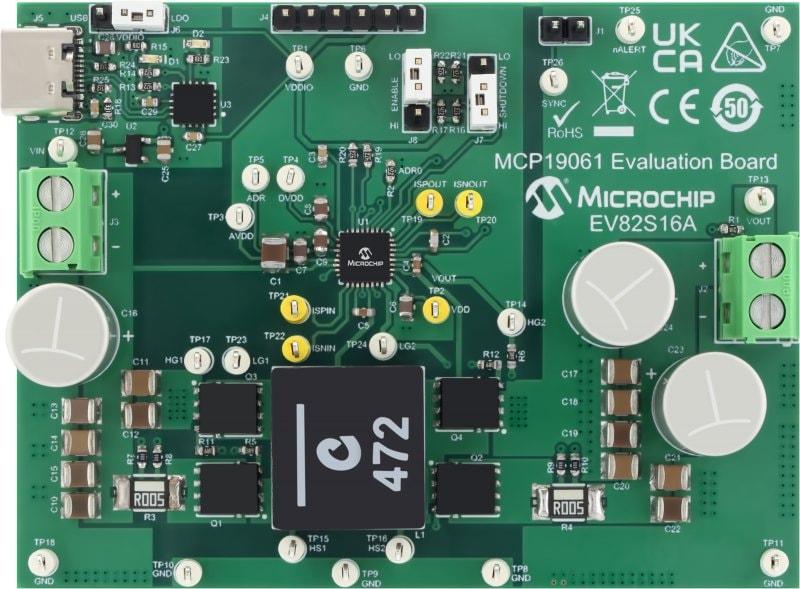

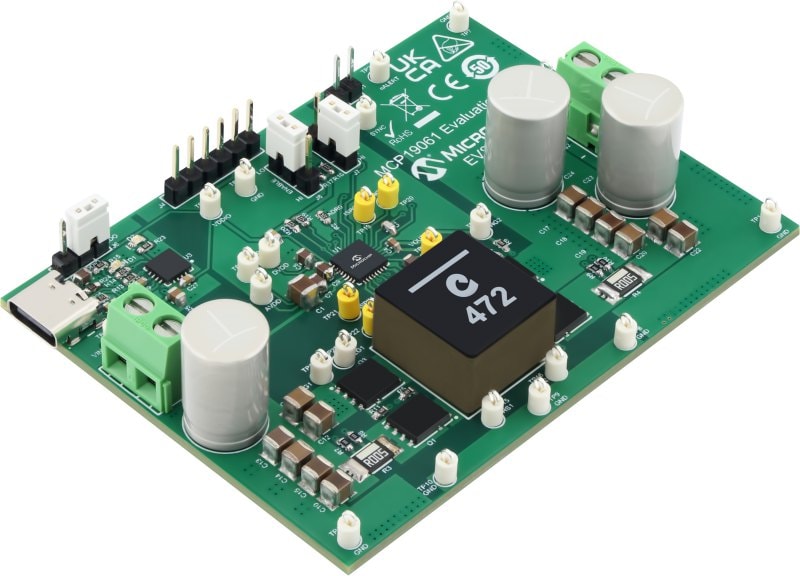

MCP19061 Evaluation Board

• Input Voltage Range: 4.5V to 36V

• Adjustable Output Voltage Range: 3V to 36V

• Maximum Output Current: 10A (can be adjusted from 0A to 10A)

• Maximum Power: 100W

• Switching Frequency Range: 300 kHz to 500 kHz (can be adjusted)

• On-Board High Performance Power MOSFET Transistors

• Input and Output Overcurrent Protections

• Input and Output Undervoltage and Overvoltage Protections

• Load dump, Overtemperature and Internal Regulator Fault Protections

• Status Report (including errors, input voltage, output voltage and current) via I2C Communication

• Internal Events Detection Pin (nALERT)

• Input Undervoltage (IVMUVF) and Overvoltage (IVMOVR) Lockout with Programmable Thresholds (via the GUI)

• Output Undervoltage (OVMUVF) andOvervoltage (OVMOVR) with Programmable Thresholds (via the GUI)

• Output Overcurrent (OCROCR) with Programmable Rising Threshold (via the GUI)

Overview


The MCP19061 Four Switch Buck-Boost Evaluation Board was developed to provide a compact, low-cost and highly-efficient DC/DC conversion for medium-to-high output currents.



Documentation


Title
Document Id
MCP19061 Evaluation Board (EV82S16A) BOM Download 7cd7cb8e-2282-4926-a33b-e6312aabecd6
MCP19061 Evaluation Board (EV82S16A) Schematic Download ba7035ad-8b4a-4996-911e-bafc8ced4d6e
MCP19061 Evaluation Board (EV82S16A) Gerbers Download 1db4e4e3-7a17-4e21-979c-0fba231a48fe
MCP19061 Evaluation Board (EV82S16A) China-RoHS-Declaration Download 4953bc59-f054-4d9c-975e-46f07d2061d2
MCP19061 Evaluation Board (EV82S16A) EU-REACH-Statement Download 246eda3f-a4ab-4365-ae38-94c88c6fb50f
MCP19061 Evaluation Board (EV82S16A) EU-DoC Download 8aaa2235-49ef-4808-a966-087937ac9f5a
MCP19061 Evaluation Board (EV82S16A) UK-DoC Download a969a4ce-c173-4dde-bf74-25d5f354b6be
MCP19061 Four Switch Buck-Boost Evaluation Board User Guide Download 928c26af-32e9-4f36-b147-21c4ca857d5b

Software


Title
Date
MCP19061 Evaluation Board (EV82S16A) GUI Download 14 Nov 2024

Silicon Products

Product
Title
Product
Title
MCP1792 100 mA High Vin Automotive LDO MCP1792 100 mA High Vin Automotive LDO
MCP2221A USB 2.0 to I2C/UART Protocol Converter with GPIO MCP2221A USB 2.0 to I2C/UART Protocol Converter with GPIO
