Overview
This Dual-Inline-Module (DIM) features a SAMC21 64-pin TQFP ARM Cortex M0+ microcontroller. It can be used to evaluate the entire family of SAM C20 and C21 series devices for motor control applications. As this MCU does not have integrated OpAmps it features support using the Motor Control System (MCS) inverter board-based op amps for motor current feedback. This DIM is not compatible with the older MCLV-2 [DM330021-2] or MCHV [DM330023-2 or DM330023-3] PIM based inverter boards.
- 120 pin connector supports higher-pin count packages
- DIM has reduced socketing insertion force
- Keyed design ensures correct board orientation
- Provides support for the SAM C2x 32-Bit MCU family
- Supports board mounted op amps for motor current feedback

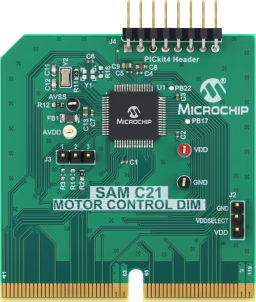

SAM C21 Motor Control Dual Inline Module (DIM)
Cannot load image!
Documentation
Filter by Document Type
Search Documentation
|
Title
|
Document Category
|
|||
|---|---|---|---|---|
| SAM C21 Motor Control DIM Design Documentation | Board Design Files | Download | ||
| China RoHS Certificate_EV74G56A | Board Design Files | Download | ||
| EU Declaration of Conformity_EV74G56A | Board Design Files | Download | ||
| UK Declaration of Conformity_EV74G56A | Board Design Files | Download | ||
| EU-REACH Statement_EV74G56A | Board Design Files | Download |
