Overview

Take your next idea to market with a development board that you can keep in your pocket. With full program and debug capabilities, the AVR64DD32 Curiosity Nano Evaluation Kit offers complete support for your next design.

Use either MPLAB X IDE or Microchip Studio 7 IDE as a magnifying glass to look into your MCU and step through the debug. Free, easy-to-use graphical programming tools MPLAB Code Configurator (MCC), allow you to intuitively program the target MCU.

AVR64DD32 microcontroller
Multi-Voltage I/O (MVIO)
One mechanical user switch
One yellow user LED
One 32.768 kHz Crystal
On-board debugger
Programming and debugging
Board identification in Microchip MPLAB X and Microchip Studio
Virtual serial port (CDC)
Two logic analyzer channels (Debug GPIO)
One green power and status LED
USB powered or externally powered
Adjustable target voltage
MIC5353 LDO regulator controlled by the on-board debugger
1.8 - 5.1 V output voltage (limited by USB input voltage)
500mA maximum output current

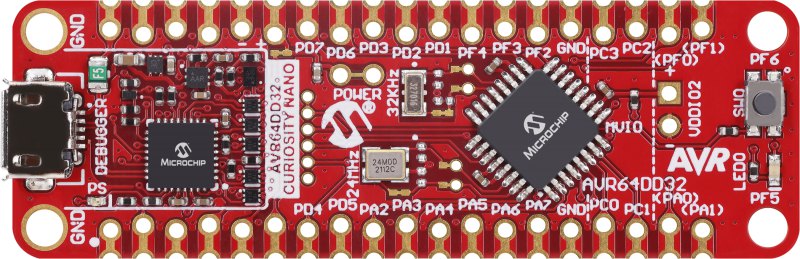

AVR64DD32 Curiosity Nano Evaluation board

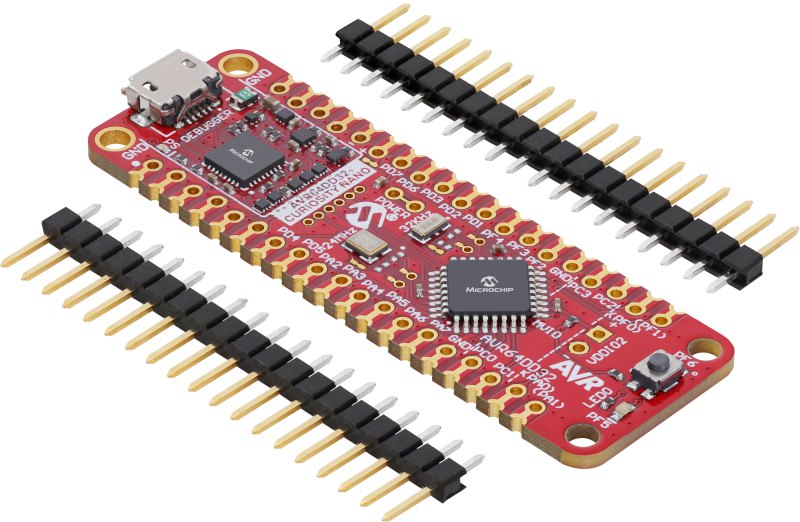

Two 100mil, 1x19 pin header strips
