Overview
Start your next sensor development with an inductive position sensor for higher accuracy, immune to motor noise, and does not need a magnetic target. The LX34070 90 degree rotary EVB (EV65W60A) along with our free IPCE softwares allow you to evaluate, auto-calibrate, and customize this sensor to your application needs.
To get started, connect the LX34070 90 degree rotary EVB through our inductive sensor programmer (LXM9518) with your computer, and the IPCE software will auto recognize your device. If you go to the demo tab in the IPCE software, you can see and interact directly with the EVB. Watch our family of videos below for detailed instructions on how to measure, calibrate, and verify the sensor.
To explore more of our inductive sensor products, please visit the Inductive Position Sensor Design Resources page.
- Differential outputs for low noise and output signal distortion
- High bandwidth: 100kHZ (<5us latency), so the sensor is used for high-speed resolver applications
- Independently adjustable offset and gain for output analog signals
- Programming via power pin or GPIO pin using LXM9518 programmer

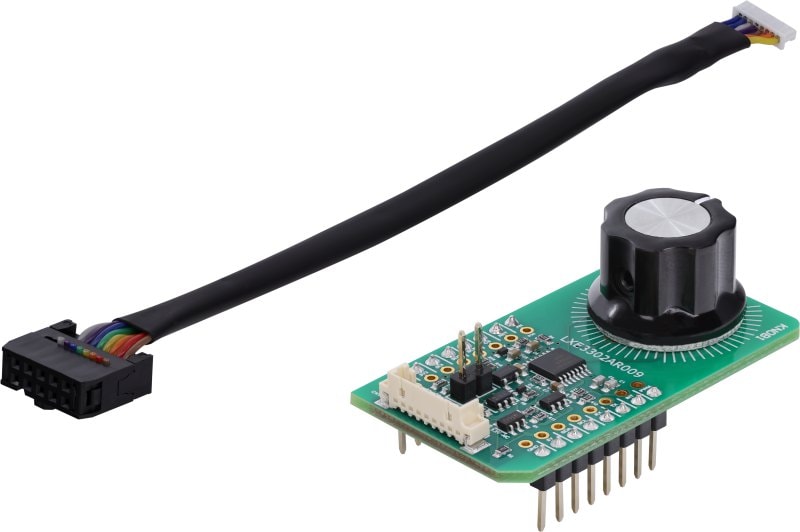

- LX34070 90 degree rotary EVB with target assembly
- Interfacing cable for the LXM9518 programmer
- Interfacing cable for monitoring the outputs
Documentation
|
Title
|
Document Category
|
|||
|---|---|---|---|---|
| LX34070 90deg Rotary Eval Board Design Files | Board Design Files | Download | ||
| LX34070 Inductive Position Sensor EVB/Kit User’s Guide | User Guide | Download | ||
| LX34070 Inductive Position Sensor EVB/Kit User’s Guide | User Guide | Download |
