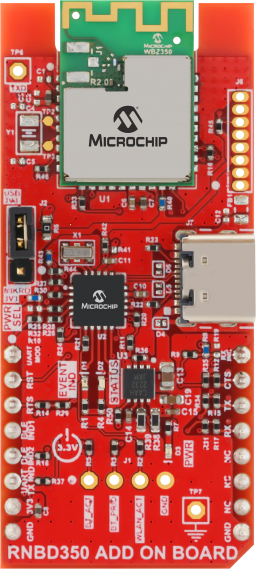

240412-wsg-photo-ev65d15a-front-transparent

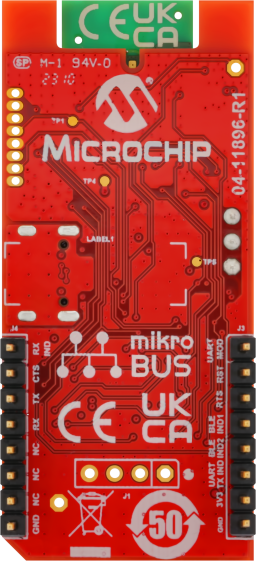

240412-wsg-photo-ev65d15a-back-transparent
240412-wsg-photo-ev65d15a-angle-transparent
240412-wsg-photo-ev65d15a-front-transparent
240412-wsg-photo-ev65d15a-back-transparent

Part Number: EV65D15A

RNBD350 Add-on Board

Download Primary User Guide
  • RNBD350PE plug-and-play, Bluetooth® Low Energy (LE) module for RTOS and Linux platforms
  • mikroBUS™ add-on board header for integration with host boards
  • USB or host board-powered at 3.3 V
  • Control interface over UART with ASCII or HCI commands
  • USB-to-UART converter enables fast evaluation
  • LEDs for power and status/event indication
View Purchasing Options
Contact Us

Overview

The RNBD350 Add-on Board is an efficient low-cost development platform to evaluate and demonstrate the features, capabilities and interfaces of our Bluetooth LE module, RNBD350PE. The add-on board is compliant to the mikroBUS standard and includes an on-board MCP2200 USB-to-UART converter enabling out-of-box evaluation alongside the Microchip Bluetooth Data App (iOS® and Android™).

The RNBD350 Add-on Board offers:

  • An easy-to-use platform to speed up design concepts to market with:
    • mikroBUS add-on board header for integration with RTOS and Linux host boards
    • USB Type-C® interface for immediate evaluation, and development on PC
  • Wi-Fi® coexistence support with PTA
  • Support for microcontroller (MCU) integration with MPLAB® X Tools and MPLAB Harmony v3 Example Applications
  • Small, low-cost form factor

The RNBD350 Bluetooth LE module supports a wide range of applications including:

  • Internet of Things (IoT)
  • Industrial automation
  • Home automation
  • Monitoring and diagnostics
  • Access control
  • Mobile phone interfaces
To view this video, please click manage cookies below and accept functional cookies.
Manage Cookies
Add to Cart

Related Tools

TP90W84A

Bluetooth LE Air Sniffer USB Dongle

The Bluetooth® LE Air Sniffer USB Dongle provides a convenient and portable solution for developers to monitor and debug using real-time packet capture.

All Application Notes

Documentation

Title
Document Id
RNBD350 Add-on Board User’s Guide PDF | HTML 61306f01-a00e-468f-9d04-cf300b5018a2
EV65D15A RNBD350 Add On Board Regulatory Approval Documentation Download cd72c863-b9ab-46a4-a4e5-1fc2850c305c
RNBD350 Add-on Board Hardware Design Document V2.0 Download bc6ab5a4-d135-4411-b653-db2090e87cd4
RNBD350 Application Developer's Guide Link 0a41846f-0eac-4aac-9f11-2b1baf083f3c
RNBD350 Application Examples Link 053e63f8-49c9-411c-a470-1fcbfec93932
China RoHS Declaration EV65D15A Download b7cafa9f-ea8a-4cb7-b5d0-7e824e32b14e
EU REACH Statement EV65D15A Download aa624654-daa0-4aba-91fe-421946b6b642

Silicon Products

Product
Title
Product
Title
RNBD350PE Global Regulatory Certified, RF Ready Module With PCB Antenna RNBD350PE Global Regulatory Certified, RF Ready Module With PCB Antenna
RNBD350UE Global Regulatory Certified, RF Ready Module With U.FL Antenna Connector RNBD350UE Global Regulatory Certified, RF Ready Module With U.FL Antenna Connector
