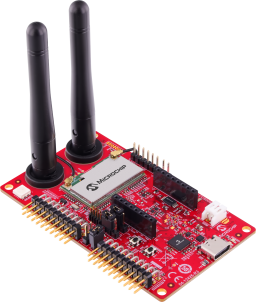

pm-25-107610-250807-wsg-photo-ev60g68a-angle-1-ltransparent

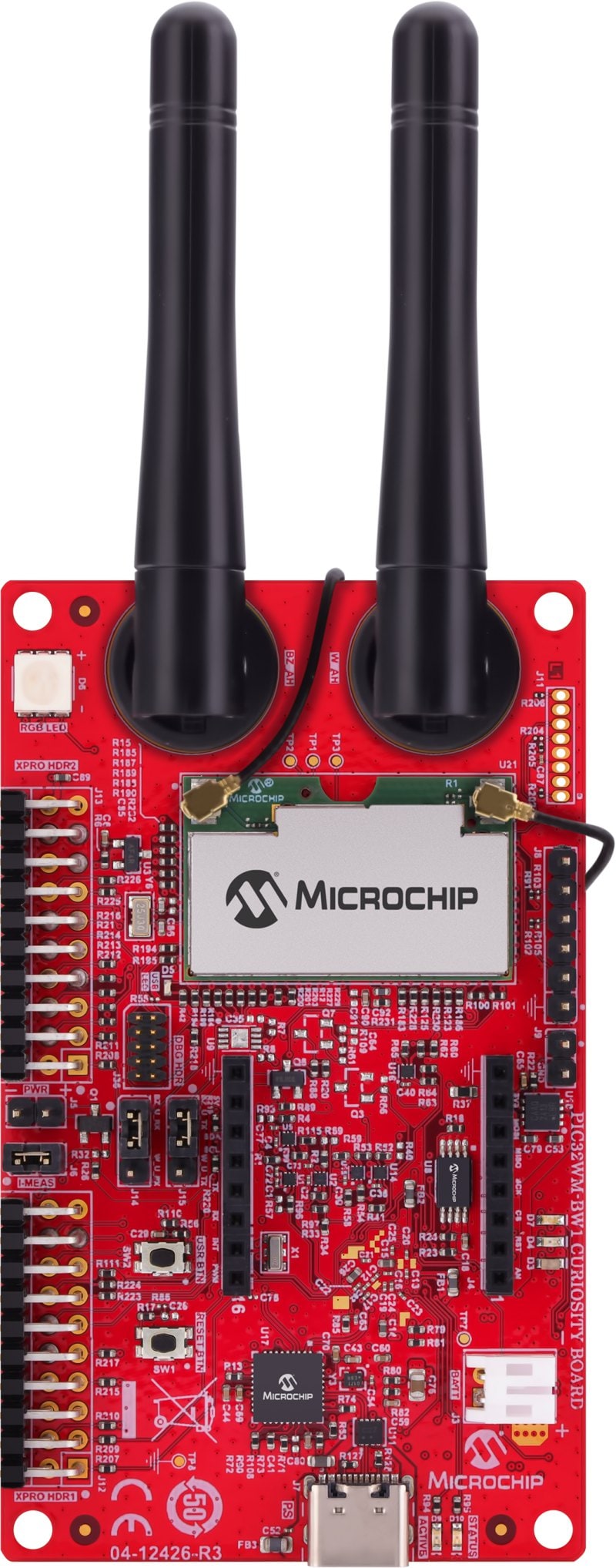

pm-25-107610-250807-wsg-photo-ev60g68a-front-1-transparent

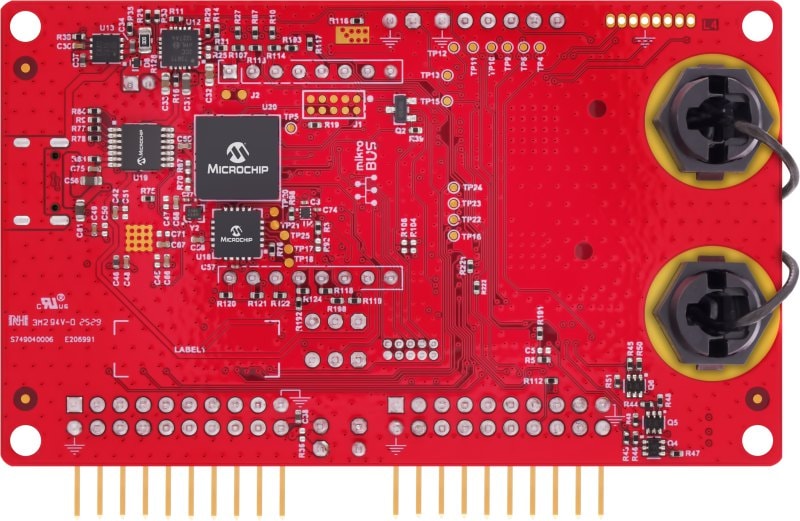

pm-25-107610-250807-wsg-photo-ev60g68a-back1-transparent
pm-25-107610-250807-wsg-photo-ev60g68a-angle-1-ltransparent
pm-25-107610-250807-wsg-photo-ev60g68a-front-1-transparent
pm-25-107610-250807-wsg-photo-ev60g68a-back1-transparent

Part Number: EV60G68A

PIC32WM-BW1 Curiosity Board

Download Primary User Guide
  • PIC32WM-BW1002UC dual-core microcontroller module with Wi-Fi® and Bluetooth®
  • mikroBUS™ socket and XPRO header for add-on and expansion boards
  • On-board programmer/debug circuit
  • One reset switch, one user configurable switch and one user LED controlled by PWM
  • USB or Li-Po battery powered with management and charger
View Purchasing Options
Contact Us

Overview

The PIC32WM-BW1 Curiosity Board is a full-feature development platform designed for rapid evaluation and prototyping with our PIC32WM-BW1002 wireless MCU modules, featuring integrated Wi-Fi and Bluetooth connectivity. This board showcases the advanced capabilities, interfaces and security features of the PIC32WM-BW1002UC module, making it well-suited to a wide range of wireless applications.

Product Features:

  • Powerful MCU: 64 MHz ARM® Cortex®-M4F core with 1 MB Flash and 128 KB RAM
  • Dual-core architecture: dedicated cores for applications/Bluetooth and Wi-Fi, enabling efficient multitasking
  • Flexible software support: programmable Bluetooth/Application software and pre-programmed Wi-Fi stack
  • Rich peripherals: integrated ADCs, comparators and multiple serial interfaces for versatile connectivity
  • Advanced security: Optional Trust&GO secure element and advanced on-board security engine

Board Highlights:

  • On-board debugging: integrated PICkit™ On-board 4 (PKOB4) debugger for easy programming and debugging
  • 10-pin ARM serial wire debug (SWD) header for external programmer/debugger
  • Expansion options:
  • mikroBUS™ header for MikroElektronika CLICK™ boards
  • Xplained Pro header for additional extension boards
  • Convenient connectivity: USB Type-C interface for power, programming and debugging

Getting Started: PIC32WM-BW1 Curiosity Board Out of the Box Demo

Package Contents
  • PIC32WM-BW1 Curiosity Board
  • 2x antennas (external and detachable)
To view this video, please click manage cookies below and accept functional cookies.
Manage Cookies

All Application Notes

Documentation

Title
Document Id
PIC32WM-BW1 Wi-Fi and Bluetooth, MCU Module Data Sheet PDF | HTML 32e95892-d04a-49c3-88da-2505b69dfa94
PIC32WM-BW1 Wi-Fi and Bluetooth MCU Module Errata PDF | HTML 12a278d0-0782-4f62-88d4-4d2e3efec911

Silicon Products

Product
Title
Product
Title
PIC32WM-BW1002 Wi-Fi and Bluetooth MCU Module with U.FL Antenna and Optional Secure Element PIC32WM-BW1002 Wi-Fi and Bluetooth MCU Module with U.FL Antenna and Optional Secure Element
