Overview

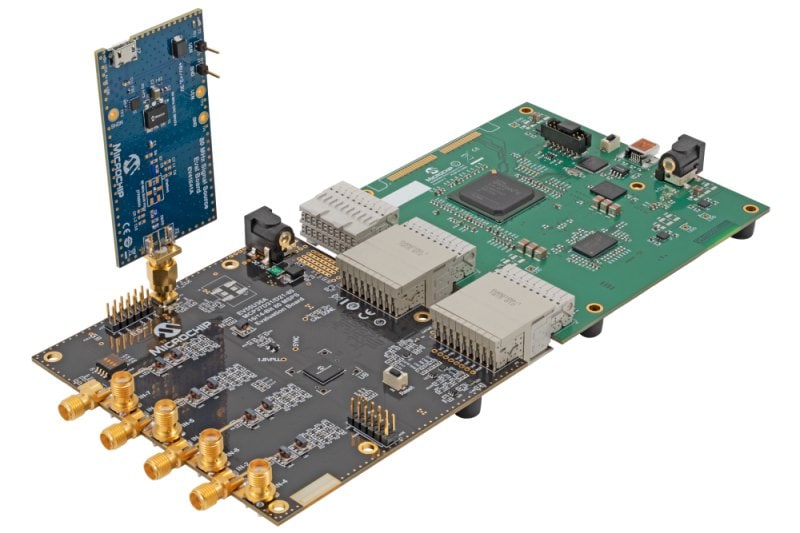

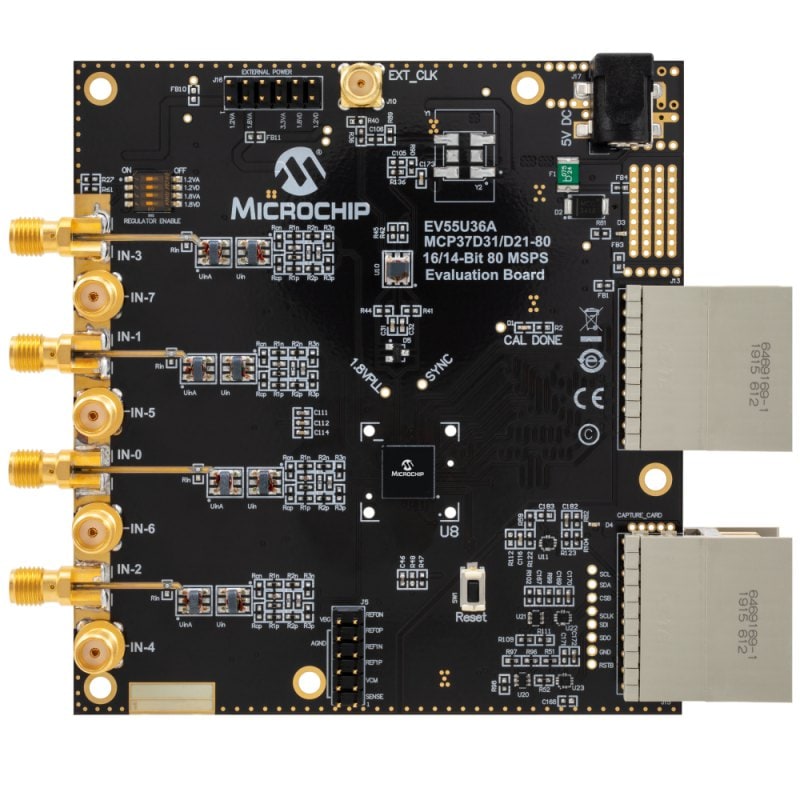

The MCP37D21-80 14-bit 80 Msps ADC Evaluation Board (EV55U36A) provides the opportunity to evaluate the performance of the MCP37D21-80 device. With the MCP37D21-80 14-bit 80 Msps pipelined A/D converter on-board, the user can access internal Register bits, and evaluate the performance and functionality of the device, including built-in various digital signal processing features.
This evaluation board works with the MCP37XXX High-Speed Pipeline ADC data capture card (ADM00506) and PC GUI ( Pipeline ADC Utility GUI ).
This evaluation board works with the MCP37XXX High-Speed Pipeline ADC data capture card (ADM00506) and PC GUI ( Pipeline ADC Utility GUI ).
Full feature evaluation of the MCP37D3X-80 A/D converters through Graphical User Interface (GUI) including
- Dynamic performance monitoring: SNR, SFDR, THD, and other FFT analyses
- Static performance monitoring: INL, DNL, Offset Error, etc.
- PLL or DLL operating mode
- Read and Write of Register bits
- Various digital signal post processing options: Digital Decimation, Digital Down-Conversion (I/Q Data), etc.
- Power consumption analysis
- Sample rates up to 80 Msps
- Up to 8-channel inputs
Cannot load image!
Documentation
Filter by Document Type
Search Documentation
|
Title
|
Document Category
|
|||
|---|---|---|---|---|
| MCP37D21-80 14-bit 80 Msps ADC Evaluation Board (EV55U36A) Gerber Files | Board Design Files | Download | ||
| MCP37D21-80 14-bit 80 Msps ADC Evaluation Board (EV55U36A) Schematics | Board Design Files | Download | ||
| MCP37D21-80 14-bit 80 Msps ADC Evaluation Board (EV55U36A) BOM | Board Design Files | Download | ||
| MCP37DX1.80 ADC Evaluation Kit User Guide | User Guide | Download |
