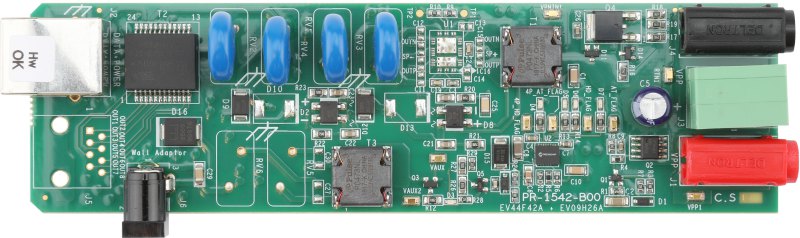

Part Number: EV44F42A

PD WITH PD70210A W/ SP


  • Featuring PD70210A PD front-end IC
  • Designed to support data and spare current using a single PD70210A device
  • Data and power in RJ45 connector
  • Output voltage connector
  • Wall adapter connector
  • On-board Power Good LED indicator
  • On-board AT detected LED indicator
  • On-board 4P_AT detected LED indicator
  • On-board HD detected LED indicator
  • On-board 4P_HD detected LED indicator
  • Evaluation board working temperature: –40 °C to 50 °C
  • Mechanical dimensions: 160 mm × 45 mm × 19 mm (L × W × H)
  • RoHS compliant

Overview


Microchip’s EV44F42A evaluation board  provide designers with the environment needed for evaluating the surge immunity performance and implementation of surge protection of PD applications based on the PD70210A and PD70224 devices. The boards support the detection, classification, and powering phases on the 2 and 4 pairs of the Cat5 cable. They support standard IEEE® 802.3af and IEEE 802.3at Type 2 interfaces. The board EV44F42A uses a single PD frontend device PD70210A . The board EV09H26A uses Microchip dual active bridge PD70224 and a frontend device PD70210A . This document provides all the necessary steps and connection instructions required to install and operate these boards.

The EV44F42A evaluation board provides designers with the environment needed for evaluating the implementation of surge protection and the surge immunity performance of PD applications with diode bridges for differential mode surges per ITU-T K21 2019 up to 6 kV and common mode surges per EN61000-4-5 (2014 Ed.3) up to 4 kV. The EV09H26A evaluation board provides designers with the environment needed for evaluating the implementation of surge protection and the surge immunity performance of PD applications with active bridge PD70224 for common mode surges per EN61000-4-5 (2014 Ed.3) up to 4 kV.

Documentation


Title
Document Id
EV44F42A Design Files Download 4ea5e17e-b62b-49dd-ad29-4ceb352cb99b
EV44F42A and EV09H26A User Guide Download 1de1fd86-890c-4bde-89fd-86c3a863712a
