Overview

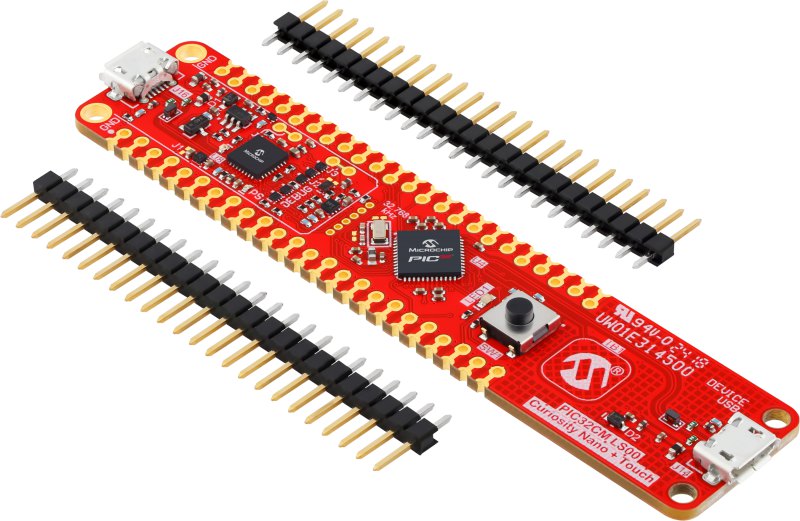

The PIC32CM LS00 Curiosity Nano+ Touch Evaluation Kit is a hardware platform to evaluate the PIC32CM5164LS00048 microcontroller. This board is supported by MPLAB Integrated tools development environment and MPLAB Harmony.
Related Boards
Development boards with expanded options or features and that support similar set of applications as PIC32CM Lx and SAML1x/L2x MCUs include:
Click here to download the Getting Started Example Application.
The following are key features of the PIC32CM LS00 Curiosity Nano+ Touch Evaluation Kit:
- The PIC32CM5164LS00048 microcontroller
- Arm® Cortex®-M23 Processor
- One user application touch button
- USB for device control and debugging
- On-board nano debugger (nEDBG)
Cannot load image!
Documentation
Filter by Document Type
Search Documentation
|
Title
|
Document Category
|
|||
|---|---|---|---|---|
| PIC32CM LS00 Curiosity Nano+ Touch Evaluation Kit User Guide | User Guide | PDF | HTML | ||
| PIC32CM LS00 Curiosity Nano+ Touch Board Design Files | Board Design Files | Download | ||
| China RoHS Certificate_EV41C56A | Board Design Files | Download | ||
| UK Declaration of Conformity_EV41C56A | Board Design Files | Download | ||
| EU Declaration of Conformity_EV41C56A | Board Design Files | Download | ||
| EU REACH Statement_EV41C56A | Board Design Files | Download | ||
| AN5548 - Protection from Cloning Using PIC32CM LSx MCUs | Application Notes | Link | PDF | HTML | |
| AN5880-Software Attack Protection on PIC32CM LS00 MCUs | Application Notes | Link | PDF | HTML | |
| Getting Started Application on PIC32CM LS00 Curiosity Nano+ Touch Evaluation Kit | Software Libraries And Firmware | Link | ||
| Sensor Fusion AWS IoT Application on PIC32CM LS00 Curiosity Nano + Touch Evaluation Kit | Software Libraries And Firmware | Link |
