Overview

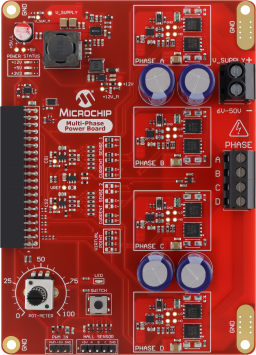

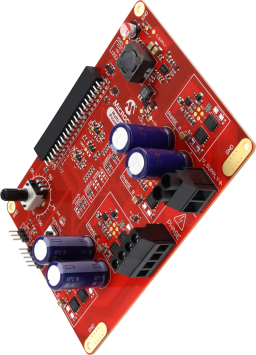

The Multi-Phase Power Board is a driver board designed for 3-phase BLDC motors with or without Hall sensors. The board supports up to 4 individual phases making it well suited for stepper motors as well.
The Multi-Phase Power Board is fully supported by MCC Melody and MPLAB and software drivers for sinusoidal and trapezoidal BLDC with and without Hall Sensors are available for select microcontrollers.
The Multi-Phases Power Board needs a Curiosity Nano development board and an adapter board.
A full solution for the AVR16EB32 requires the following three development kits:
- AVR16EB32 Curiosity Nano
- AVR16EB32-CNANO MPPB-Adapter
- Multi-Phase Power Board
- Power stage for motor control
- Board to board connector for Multi-Phase Power Board Adapters
- Wide voltage range
- Supports 6V-50V external power input
- Rated for 10A at 24V
- Four output phases
- Individually controllable
- MIC4605 half bridge mosfet driver
- Voltage feedback from each phase
- User configurable virtual point
- Two current sense channels
- User configurable phase selection
- Using MCP6021 Operational amplifiers
- On-Board Peripherals
- MCP9701 temperature sensor
- Potentiometer
- User LED and push button
- Optional external PWM input
- Optional HALL sensor input
- Board identification in MPLAB X IDE
- On-board Power Supplies
- Multi-Phases Power Board
Documentation
|
Title
|
Document Category
|
|||
|---|---|---|---|---|
| Multi-Phase Power Board Hardware User Guide | User Guides | PDF | HTML | ||
| Multi-Phase Power Board Schematics | Board Design Files | Download | ||
| Multi-Phase Power Board Altium Project | Board Design Files | Download | ||
| Multi-Phase Power Board Design Documentation | Board Design Files | Download |
| Tool Details |
|---|
The EV88N31A is an adapter board that allow an easy connection between the AVR16EB32 Curiority Nano and the Multi-Phase Power Board.
A full solution for the AVR16EB32 requires the following three development kits:
|
|
The Multi-Phase Power Board is a driver board designed for 3-phase BLDC motors with or without Hall sensors. The board supports up to 4 individual phases making it well suited for stepper motors as well.
The Multi-Phase Power Board is fully supported by MCC Melody and MPLAB and software drivers for sinusoidal and trapezoidal BLDC with and without Hall Sensors are available for select microcontrollers. The Multi-Phases Power Board needs a Curiosity Nano development board and an adapter board. A full solution for the AVR16EB32 requires the following three development kits:
|
| Tool Details |
|---|
Take your next idea to market with a development board that you can keep in your pocket. With full programming and debugging capabilities, the AVR16EB32 Curiosity Nano Evaluation Kit offers complete support for your next design.
With the award-winning MPLAB X integrated development platform and MPLAB Code Configurator (MCC), the kit provides access to the Intelligent analog and Core Independent Peripherals on the AVR16EB32. MCC is a free, graphical programming tool to configure the rich set of peripherals and functions specific for your application. |
