Overview
Take your next idea to market with a development board that you can keep in your pocket. With full programming and debugging capabilities, the PIC16F15276 Curiosity Nano Evaluation Kit offers complete support for your next design.
With the award-winning MPLAB X integrated development platform and MPLAB Code Configurator (MCC), the kit provides access to the Intelligent analog and Core Independent Peripherals on the PIC16F15276. MCC is a free, graphical programming tool to configure the rich set of peripherals and functions specific for your application.
- PIC16F15276 Microcontroller
- One Yellow User LED
- One Mechanical User Switch
- On-Board Debugger:
- Board identification in MPLAB® X IDE
- One green power and status LED
- Programming and debugging
- Virtual serial port (CDC)
- One debug GPIO channel (DGI GPIO)
- USB Powered
- Adjustable Target Voltage:
- MIC5353 LDO regulator controlled by the on-board debugger
- 1.8-5.1V output voltage (limited by USB input voltage)
- 500 mA maximum output current (limited by ambient temperature and output voltage)

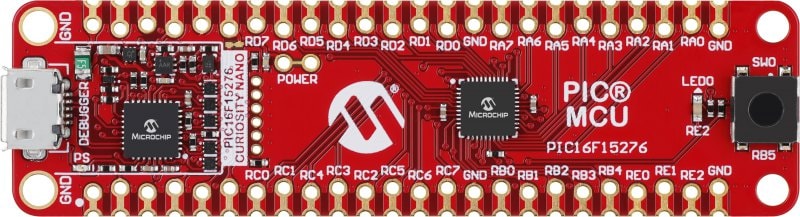

- PIC16F15276 Curiosity Nano evaluation board
- Two 100mil, 1x24 pin header strips
Cannot load image!
Documentation
Filter by Document Type
Search Documentation
|
Title
|
Document Category
|
|||
|---|---|---|---|---|
| PIC16F15276 Curiosity Nano Altium Project | Board Design Files | Download | ||
| PIC16F15276 Curiosity Nano Design Documentation | Board Design Files | Download | ||
| PIC16F15276 Curiosity Nano Schematics | Board Design Files | Download | ||
| PIC16F15276 Curiosity Nano Hardware User Guide | User Guide | PDF | HTML |
| Tool Details |
|---|
MPLAB X IDE is a highly configurable software platform that provides powerful, free tools for developing, debugging and qualifying embedded designs that use microcontrollers and digital signal controllers.
|
MPLAB XC Compilers are optimized C compilers for Microchip microcontrollers, offering high-performance code generation and integration with MPLAB Tools for VS Code and MPLAB X IDE.
|
| Tool Details |
|---|
The Microchip Curiosity Nano Base for Click boards™ evaluation kit is a hardware extension platform to ease the connection between Curiosity Nano kits and extension boards like the mikroBUS™ Click modules and Xplained Pro extension boards.
|
