Part Number: EA16Z43A

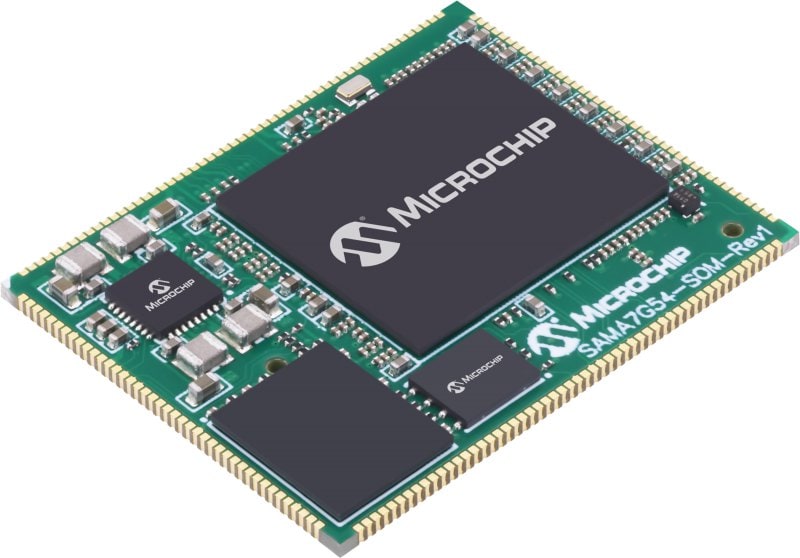

EA16Z43A - SAMA7G54 SOM EA Bundle
- System-In-Package Including:
- Arm Cortex-A7 processor-based SAMA7G54 MPU
- 2-Gbit DDR3L SDRAM memory
- On-Board Power Management Unit (MCP16502TAB-E/S8B)
- 4-Gbit SLC NAND Flash Memory
- 64-Mbit Serial Quad I/O Flash Memory (SST26VF064BEUIT-104I/MF) with Embedded EUI-48™ and EUI-64™ MAC Addresses
- MEMS Oscillators and Crystal for Clock Generation
- 190-Pin, 0.65 mm Pad Pitch, 38 x 30 mm Module, Solderable Manually for Prototyping
- 113 I/Os
- Four Tamper Pins
- Two High-Speed USB Devices and Three High-Speed USB Hosts Sharing Three On-Chip Transceivers
- Shutdown and Reset Control Pins
- Independent Power Supplies Available for SD Cards, Octo SPI Memory, Camera Sensor and Backup Depending on Voltage Domains
- Operational Specifications:
- Main operating voltage: 3.0V to 5.5V ± 5%
- Industrial temperature range
- Integrated oscillators, internal voltage regulators
- Multiple interfaces and I/Os for easy application development
Overview
The EA16Z43A is a bundle of 3 pre-production Microchip SAMA7G54 System-On-Module products. These are small single-sided MPU SOMs based on a System-In-Package (SIP) Arm® Cortex®-A7 CPU-based embedded microprocessor with 2-Gbit DDR3L SDRAM integrated running up to 1 GHz.. The SAMA7G54 SOM family is built on a common set of proven Microchip components to reduce time to market by simplifying hardware design and software development. In addition to the 2-Gbit DDR3L SAMA7G54 MPU SIP, the SOM embeds a 4-Gbit NAND Flash memory, a 64-Mbit serial Quad I/O Flash memory and a dedicated Power Management Unit. The SAMA7G54 SOM limits design rules of the main application board, reducing overall PCB complexity and cost. The SAMA7G54 SOM family is supported by a free Linux® distribution and bare metal C examples.
For access to the datasheet and supporting documentation for the SAMA7G54 System on Module please visit this link
https://github.com/MicrochipTech/EA16Z43A
- Three SAMA7G54D2GN4 System on Module Products
