Overview
The DSA504RT-ZXX-EK Evaluation Kit is the development platform designed to accelerate the evaluation of the plastic version of the DSA504RT high-performance clock synthesizer for space and high-reliability applications.
The kit enables engineers to quickly assess timing accuracy, jitter performance, frequency generation, and synchronization capabilities in real-world system environments. With flexible clock configuration options and simplified connectivity, it supports rapid prototyping and validation of complex timing architectures. The platform helps reduce integration effort while providing a fast path to performance characterization and system optimization.
Ideal for aerospace, communication, and mission-critical designs, the DSA504RT Evaluation Kit streamlines development from initial evaluation to final deployment.
DSA504RT-ZXX-EK Evaluation Board
- VQFN28 socket compatible with the DSA504RT-ZXX-HP or DSA504RT-ZXX-SP plastic devices
- Six dual-output connectors, each supporting configurable output formats: LPHCSL, LVDS, LVPECL and LVCMOS
- Two-input connectors supporting either LVCMOS or differential input clock signals
- 100 MHz on-board oscillator
- Jumper configuration, allowing individual VDD output selection for each output channel

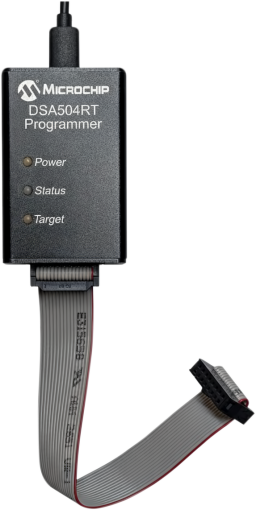

DSA504RT-PRG Programmer
- Connects to the DSA504RT-ZXX-EK through a 16-pin connector, enabling programming of the DSA504RT configuration in either RAM or OTP fuses
One DSA504RT-PEB Evaluation Board
Two DSA504RT-ZXX-HP devices
One DSA504RT-PRG Programming dongle to load a configuration in DSA504RT RAM or OTP memory
One USB-C to USB-A cable
Documentation
|
Title
|
Document Category
|
|||
|---|---|---|---|---|
| DSA504RT-ZXX-EK Evaluation Kit User Guide | User Guide | Download | ||
| DSA504RT Evaluation Board Schematics - Plastic | Schematics | Download | ||
| Timing GUI Version 4.2.2 | Software Tools | Download | ||
| DSA504RT Programming GUI Version 0.2.0 | Software Tools | Download | ||
| DSA504RT-ZXX CAD Models | Board Design Files | Download |
