Overview
The MGC3140 Emerald Development Kit builds a complete MGC3140 reference system for evaluation as well as the design-in of 3D gesture input sensing systems.
The MGC3140 Emerald Development Kit is based on Microchip's award winning GestIC technology and enables true single chip 3D gesture detection.
The design-in is simplified with the help of the AUREA GUI.
The MGC3140 Emerald Development Kit is a complete MGC3140 reference system for evaluation as well as design-in.
Based on Microchip's award winning GestIC technology it enables compelling 3D gesture based UI in embedded systems.
All processing is done on the MGC3140 - no host processing is required.
The system design and straightforward design-in process enables short Time-To-Market (TTT) for your projects.

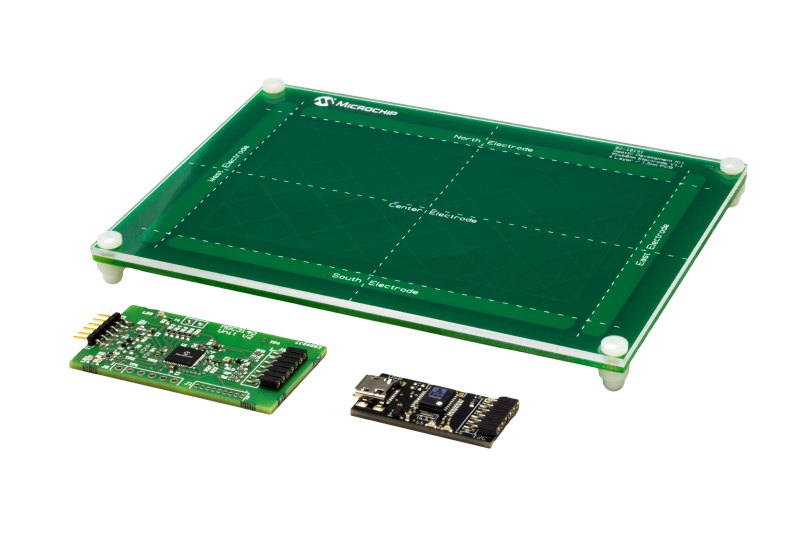

Emerald Package:
- MGC3140 Module
- I2C to USB Bridge Module
- Reference Electrode (95 x 60mm sensitive area)
- Artificial Hands
Online resources: www.microchip.com/gesticgettingstarted
- AUREA Design-in / Evaluation GUI
- GestIC Electrode Reference Designs
- Tutorial Videos
- MGC3140 Interface Library Manual (I2C)
- Electrode Design Guide
- GestIC SDK
- MGC3140 Datasheet / Product Brief
For GUI:
Windows 7 / Windows 8 / Windows 10
Documentation
|
Title
|
Document Category
|
|||
|---|---|---|---|---|
| MGC3140/MXG3141 GestIC Library Interface Description User's Guide | User Guide | Download | ||
| Aurea Graphical User Interface User's Guide | User Guide | Download | ||
| MGC3140_Hardware_References_Package | Board Design Files | Download | ||
| GestIC Design Guide | User Guide | Download |
