Part Number: DM160225

DM160225 - 3DTOUCHPAD

User Guide: PDF
3DTouchPad User's Guide
View Purchasing Options
Contact Us

Overview

NOTE: this product has now been End-of-Life (EOL).

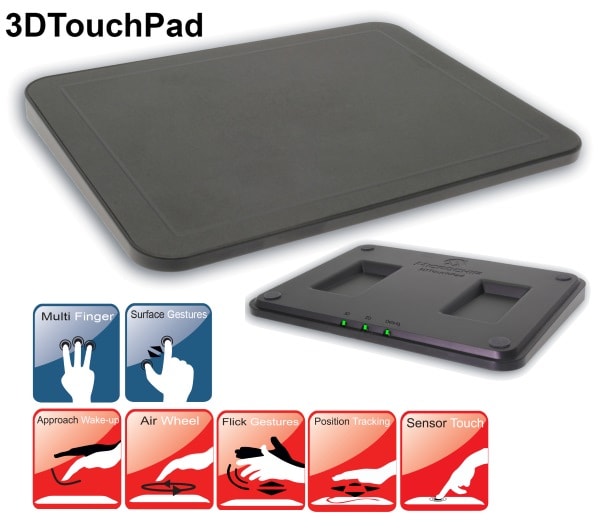

The 3DTouchPad is a PC peripheral to extend a 2D touch pad with 3D Gestures. It utilizes Microchip’s projected capacitive PCAP sensor solutions as well as Microchip’s 3D Gesture Technology GestIC. The 3DTouchpad offers multi-finger tracking and surface gestures as well as free space 3D Gestures above the surface.

The 3DTouchPad comes with a suite of software including a comprehensive SDK for Windows7 / Windows 8 – allowing feature rich development of Apps / drivers.

The SDK is fully documented and loaded with compelling features, while at the same time the 3DTouchPad offers an exceptional out of the box experience.

 Out of the box features
 SDK
  • Driverless HID USB connection
  • Cursor control
  • Win7/8 click events
  • 2 finger Pinch/Zoom
  • 2 finger scroll
  • Edge swipes (Windows 8)
  • Content flow control by East/West flicks (3D)
  • Content scroll
  • Close Application by 3D gesture (double flick)
  • Maximize windows
3DTouchPad GUI is downloadable for free at microchip.com.
A compelling tool for SW/Driver/Apps development.

Please refer to manual for more features.
  • 2D Touch position / Touch ID
  • 2D Gestures – swipes
  • 2D Gestures – zoom
  • 2D Gestures – scroll
  • 2D raw signals access
  • GestIC XYZ – position
  • Full access to Gesture set of GestIC Colibri suite
  • GestIC raw signal access
Combined 2D-3D sensor mode as well as 2D only and 3D only mode.


  • 3DTouchPad
  • USB cable
  • Info sheet w/ links to Documentation, SW package, Tutorial Video, ...

Cannot load image!

Documentation

Filter by Document Type
Search Documentation
Title
Document Category
3DTouchPadGUI_1.2.13 Software Libraries and Firmware Download
3DTouchPad User's Guide User Guide Download
3DTouchPad Software Development Kit Software Libraries and Firmware Download
HID Sell Sheet Brochures Download
3DTouchPad Sell Sheet Brochures Download
