Overview

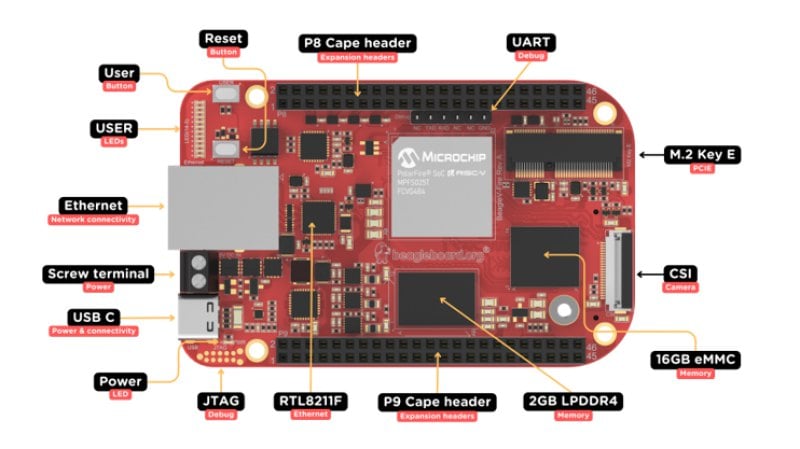

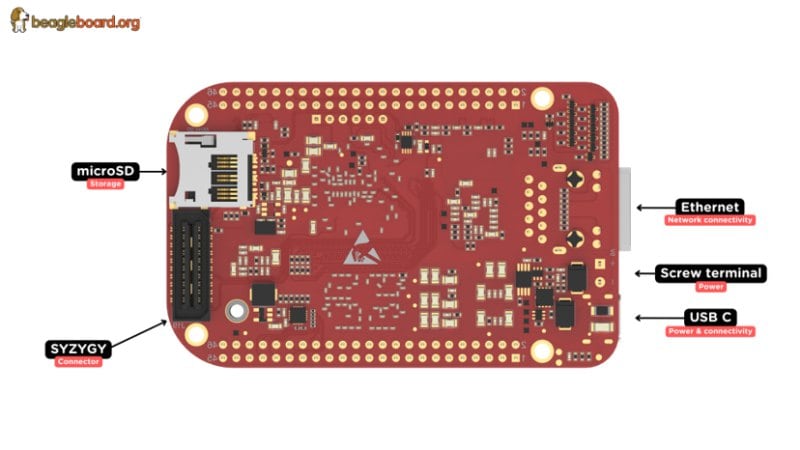

BeagleBoard.org leverages Microchip's PolarFire® MPFS025T SoC to create the BeagleV®-Fire SBC, a revolutionary single-board computer (SBC). This open-source hardware platform empowers developers, tinkerers, and the global community to explore the vast potential of RISC-V architecture and FPGA technology. This remarkable addition to the BeagleBoard.org BeagleV® family of boards opens up new horizons for developers, tinkerers, and the open-source community to explore the vast potential of RISC-V architecture and FPGA technology.
Microchip® Polarfire® MPFS025T SoC FPGA
FPGA Fabric
- 23K logic elements (4-input LUT + DFF)
- 68 Math blocks (18×18 MACC)
- 4 SerDes lanes of 12.7 Gbps
Microprocessor Subsystem Processor
- 1x 64-bit RV64IMAC monitor/boot core (E51)
- 4x 64-bit RV64GC Application cores (U54-MC)
- Fmax of 667 MHz (–40 °C to 100 °C Tj),
- 3.125 CoreMarks/MHz, 1.714 DMIPS/MHz
Storage
- MMC 5.1 SD/SDIO
- 1 Quad SPI flash controller
- 128 KB eNVM
- 56KB sNVM
one unit of BeagleV-Fire board.
one Quick Start Card
