Part Number: ATAVRXBNDL
QTOUCH XPLAINED
The kit features one slider, one wheel, and two buttons, and has eight through-holes to allow the LEDs on the board to remain visible from the front. The Xplain kit must be bought separately.
Overview
This product is no longer available for sale.
A QTouch Library-supported add-on board for the Xplain kit that adds capacitive touch functionality. The kit demonstrates how QTouch solutions require very simple circuit design and few external components. The kit features one slider, one wheel, and two buttons, and has eight through-holes to allow the LEDs on the board to remain visible from the front. The Xplain kit must be bought separately.
NOTE:

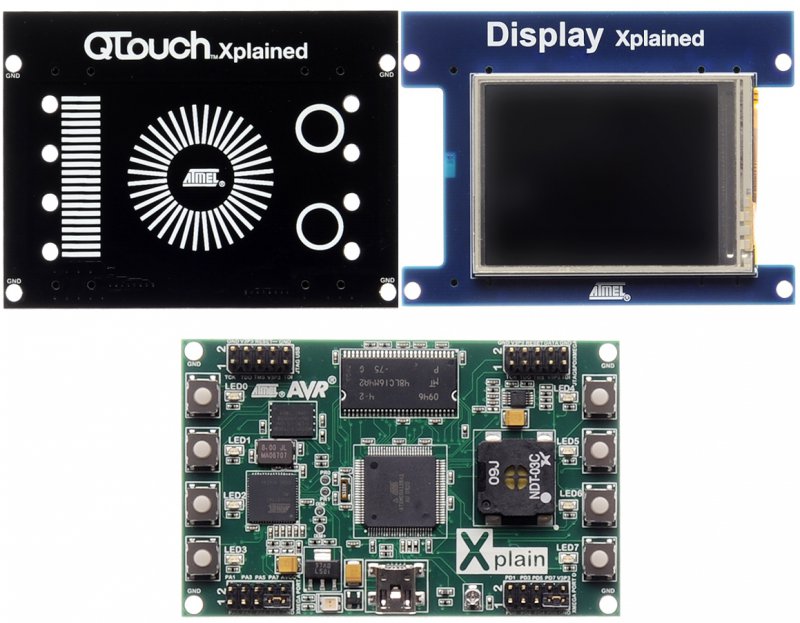

The QTouch Xplained is only available as a bundle consisting of AVR Xplain, Display Xplained and QTouch Xplained.
Application Notes
|
Title
|
Date
|
Document Category
|
|
|---|---|---|---|
| AVR1921: Reprogramming the Xplain AT90USB1287 and ATxmega128A1 firmware | 10 Dec 2016 | Link | Application Notes |
| AVR3000: QTouch Conducted Immunity | 10 Dec 2016 | Link | Application Notes |
