Part Number: ATAVRBC100

ATAVRBC100

Overview

This product is no longer available for sale.

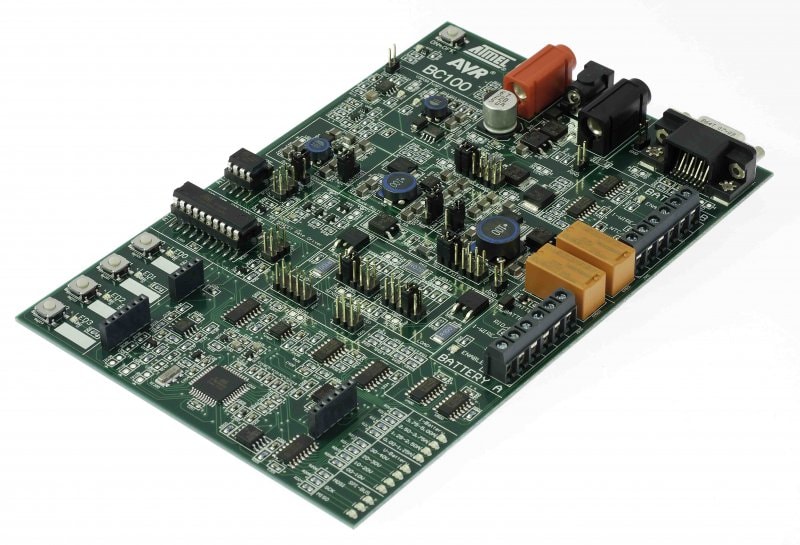

A reference design that demonstrates charging and discharging of two batteries/battery packs with a programmable charge voltage up to 40V. It also demonstrates how to design a battery back-up, also known as an uninterruptible power supply, where the charged batteries are used to power the system if the external voltage supply is lost.

A reference design that demonstrates charging and discharging of two batteries/battery packs with a programmable charge voltage up to 40V.
