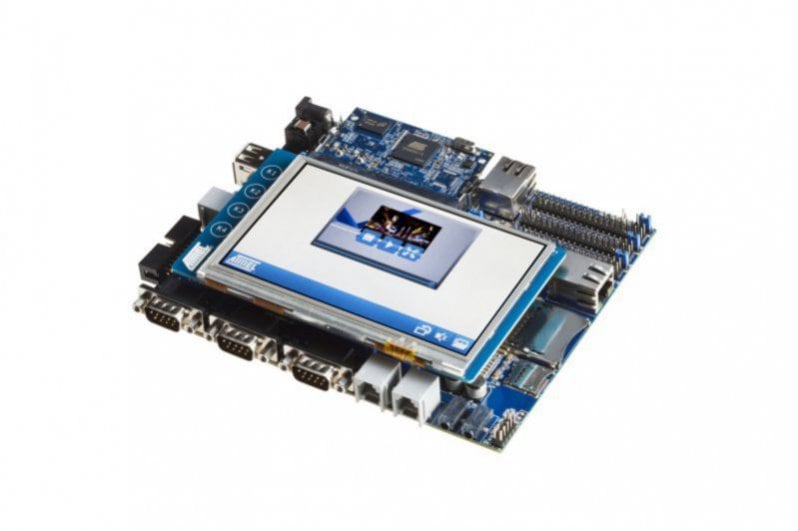

The SAM9X35-EK Evaluation Kit enables rapid evaluaton and code development of applications running on a SAM9X35 device.
- 400MHz CPU
- External memory
- DDR2-SDRAM (1Gb)
- NAND Flash (2 or 4Gb)
- Three USB ports
- HS (EHCI) and FS (OHCI) Host, multiplexed with HS USB Device via Micro AB connector
- HS (EHCI) and FS (OHCI) Host, via standard type A connector
- FS only (OHCI) Host, via standard type A connector
- One Ethernet 10/100 interface with on-board MAC controllers and RJ45 sockets
- Two high-speed SD/MMC interfaces
- One TFT-LCD module interface
- One stereo CODEC interface with line-in and headphone jacks
- Two CAN interfaces
- One telephone/modem interface with RJ11 connector
- Two serial interfaces (1x USART, 1x UART)
- One Two-wire Interface (TWI)
- One ZigBee?? extension port
- 5.0" TFT-LCD module with
- 800x480 resolution
- backlight
- resistive touch panel
- 24-bit RGB interface
- four additional QTouch?? buttons on board
