Overview

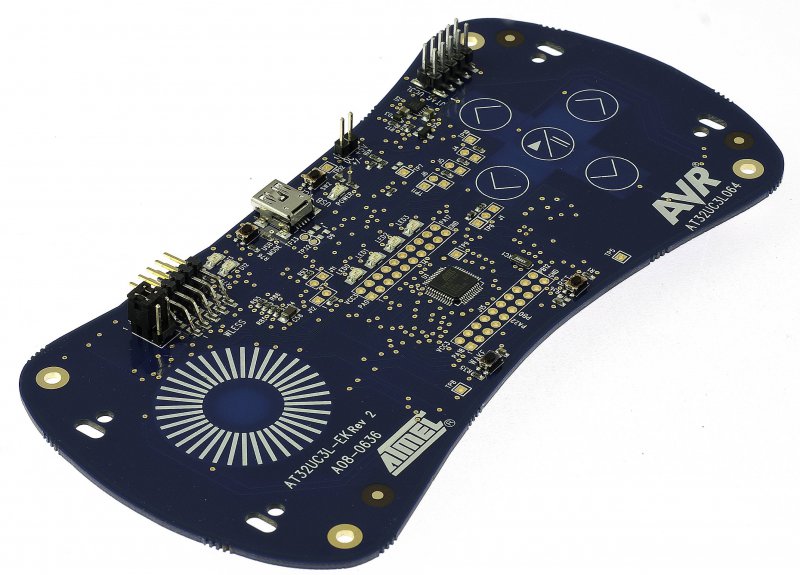

Evaluation kit and development system for the 32-bit AVR AT32UC3L064 microcontroller. The kit is equipped with a rich set of peripherals making it a perfect evaluation platform.
- Supports the AT32UC3L064
- USB / battery powered
- UC3B board controller / bootloader
- Sensors: QWheel + 5 QTouch buttons
- Easy access to all MCU pins
Cannot load image!
Documentation
Filter by Document Type
Search Documentation
|
Title
|
Document Category
|
|||
|---|---|---|---|---|
| AT32UC3L-EK Schematics | Board Design Files | Download | ||
| UC3L Evaluation Kit - The Atmelr AT32UC3L-EK is an evaluation kitand development system for the Atmel AVRr 32-bit AT32UC3L064 microcontroller. As an evaluation kit, the board focus is towards Atmel QTouchr and QMatrix support and picoPowerr technology. As | User Guide | Download | ||
| AVR4030: AVR Software Framework - Reference Manual | Application Notes | Link | Download | |
| AT32UC3L-EK Gerber PCB Assembly | Miscellaneous | Download | ||
| AT32UC3L-EK Gerber PCB Manufacturing | Miscellaneous | Download | ||
| AVR4029: Software Framework - Getting Started | Application Notes | Link | Download | |
| AVR32777: AT32UC3L-EK Getting Started Guide | Application Notes | Link | Download |
