Part Number: ARD00354

MCP6N11 AND MCP6V2X WHEATSTONE BRIDGE REFERENCE DESIGN

User Guide: PDF
MCP6N11 and MCP6V2x Wheatstone Bridge Reference Design User's Guide
View Purchasing Options
Contact Us

Overview

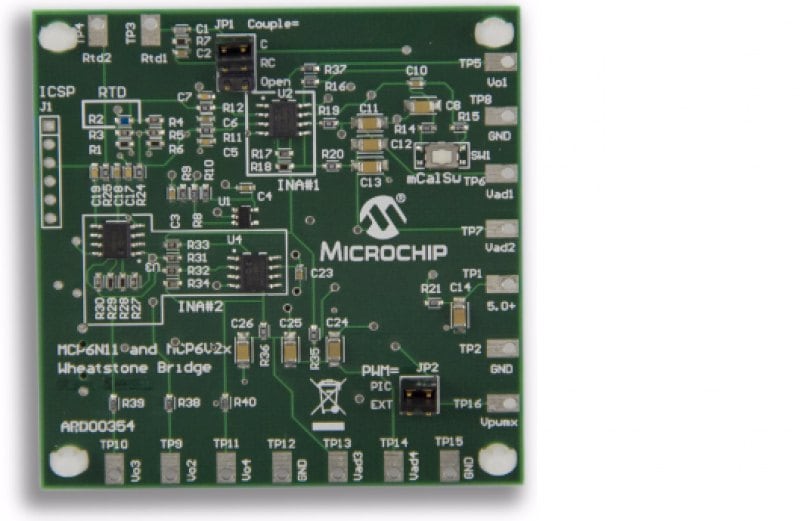

This board demonstrates the performance of Microchip’s MCP6N11 instrumentation amplifier (INA) and a traditional three op amp INA using Microchip’s MCP6V26 and MCP6V27 auto-zeroed op amps. The input signal comes from an RTD temperature sensor in a Wheatstone bridge. Real world interference is added to the bridge’s output, to provide realistic performance comparisons. Data is gathered and displayed on a PC, for ease of use. The USB PICmicro® microcontroller and included Graphical User Interface (GUI) provides the means to configure the board and collect sample data.







  • RTD temperature sensor
  • INA signal conditioning
  • PICmicro® signal conditioning and communications
  • PC software (GUI): Thermal Management Utility

    •






    1x MCP6N11 and MCP6V2x Wheatstone Bridge Reference Design (ARD00354)
    1x Mini-USB cable

    234-ard00354.png 235-ard00354.png

    Cannot load image!

    Documentation

    Filter by Document Type
    Search Documentation
    Title
    Document Category
    MCP6N11 and MCP6V2x Wheatstone Bridge Reference Design User's Guide User Guide Download
    MCP6N11 Ref Des (ARD00354) BOM Board Design Files Download
    MCP6N11 Ref Des (ARD00354) Schematic Board Design Files Download
    MCP6N11 Ref Des (ARD00354) Gerbers Board Design Files Download
    MCP6N11 Ref Des (ARD00354) Firmware v1.0 (hex only) Software Libraries and Firmware Download
    MCP6N11 Data Sheets Download
    MCP6V26/7/8 Data Sheet Data Sheets Download
    PIC18F2455/2550/4455/4550 Data Sheet Data Sheets Download
    PIC18F2458/2553/4458/4553 Data Sheet Data Sheets Download
    Thermal Management Utility (v1.6.2) Software Libraries and Firmware Download
    MCP6N11 Ref Des (ARD00354) Design Files Other Board Design Files Download
    MCP6N11 Ref Des (ARD00354) 3D PDF Other Board Design Files Download
